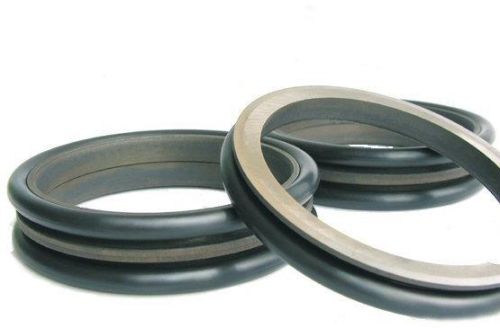

Floating Seal

We are offering floating seal.
Specifications
floating seals which is one of mechanical seals, consists of two identical steel rings and rubber washers. The seal operates by preloading the two rubber washers and floating the two polished steel faces between them within the seal chamber.
Floating seals is applicable to various engineering machinery and mining machinery such as bulldozers, graps, coat cutters, loaders, land levelers, cranes, mixers,etc.
seal group floating seal was developed as a seal for track rollers of construction machine and vehicles. This seal consists of the o-ring and the floating seal made of special cast iron, achieving simple design.
Diameter 35mm ---- diameter 1425mm
types:
there are two different types of mechanical face seals:the most common form is type do,which is characterized by the use of an o-ring as the secondary sealing element.
Type df,on the other hand, has an elastomer with a diamond-shaped cross section as a secondary sealing element instead of the o-ring.
technical data for metal seal rings:
material 9cr6mo 15cr3mo 15crmo
process cast cast cast
cost high medium low
wear life high high medium
corrosion resistance high mediumhigh low
scoring resistance high medium medium
advantages:
- simple free
- quality sealing effect against dirt, dust, water and abrasive media from the outside and against oil and grease from the inside
- competitive price
- long service life
applications:
mechanical face seals are predominantly used for sealing the bearings in construction machinery or production plants operating under extreme arduous conditions and subject to severe wear.
These include:
- tracked vehicles,such as excavators and bulldozers
- conveyor systems
- heavy trucks
- axles
- tunnel boring machines
- agriculture machines
- mining machines
