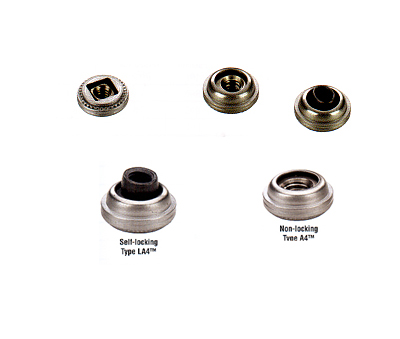

FLOATING SELF-CLINCHING FASTENERS

These fasteners provide toad-bearing threads in thin sheets as hard as Rockwell B 88 / HS 183 and permit up to .030" / 0.76 mm adjustment for mating hole misalignment.

The self-clinching feature offers fast and simple assembly. The fasteners are squeezed into properly sized holes using any standard press. The sheet remains flush on one side,
and the fastener is permanently locked in place. Uniformity of locking torque for Type LA4 is equivalent to NASM25027 specifications.

• Prepare properly sized mounting hole in sheet. Do not perform any secondary operations such as deburring
• Place fastener into the anvil hole and place the mounting hole over the shank of the fastener.
• With the punch and anvil surfaces parallel, apply sufficient squeezing force until flange contacts mounting sheet

• Speeds assembly by compensating for mating hole misalignment.
• Permanent installation into stainless steel sheets as thin as .038" 10.97 mm and greater.
• Provides high torque-out and pushout resistance in stainless panels.
• RoHS compliant
