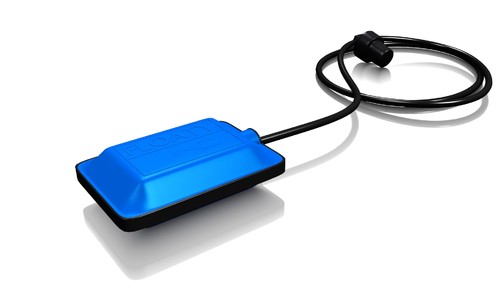

Floaty Level Switch

Listing ID #2645895

We are ranked amongst the well-known to offer a broad gamut of Floaty Level Switch. This switch is designed by our adept industry experts keeping in mind the various application requirements of our clients. Further, they make use of finest quality raw material combined with modern technologies in order to fabricate this range. Also, we properly examine this switch after procurement to eradicate any kind of flaws and deliver a perfect range at clients' premises.
General Characteristics:
Mechanical level switch for liquids, The magnet equipped float follows the actual level of the liquid and magnetically triggers a Reed switch in an identified and fixed position.
Floaty Level Switch.
Features:
Adjustable level differential from 0.5 to 2 meters
Case and cable hermetically sealed by plastic injection molding
Suitable for sludgeeffluent applications
Corrosion Free
Sturdy and durable need not maintain
No current voltage is passed through water, therefore no electrolysis salt deposition
Long life. (Approximate 10 million operations)
Rust proof. (Entire sensor body in polypropylene)
Can be used in hard water - fuel- such as diesel, kerosene, oil etc.
TECHNICAL SPECIFICATIONS
Type
Floaty Level Switch
Switch Type
1 CO Contact
Switch Contact Rating
5A @ 230VAC
Electrical Connection
3 4" ET
Terminal Enclosure
Polyester Plastic Weather Proof To IP66
Differential
100mm
Flanged Standard
BS-10 T 'D' Flange (Optional)
MOC for Process Connection
PP
MOC for Float
PP
Flexible Cable
As per Manufacturer STD.
Other Wetted Parts
PPABS
Max.Working Pressure
Atmospheric
Max.Working Temperature
60 oC
Also available in 5mtr.10mtr. Cable length with junction boxes.
