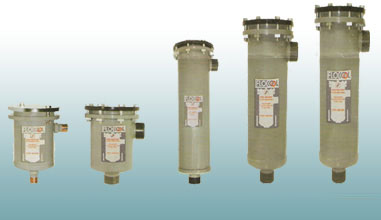

Flokool Liquid & Suction Filter - Drier

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Replaceable core filter-drier for CFC , HCFC and HFC refrigerants for use in large commercial air conditioning and refrigeration systems Unique internal hardware for hassle-free....

View More Details

Send Enquiry

Company Information

flokool

Waliv, Thane, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Replaceable core filter-drier for CFC , HCFC and HFC refrigerants for use in large commercial air conditioning and refrigeration systems

Unique internal hardware for hassle-free installation

Powder coating paint finish on exterior

Sturdy Steel shells for long life durability

Solid MS Steel fitting

100 Mesh outlet screen

Interior & Exterior body with special Chemical treatments to prevent rusting but compatible with CFC , HCFC & HFC refrigerants



	Filtration(with block) 40 microns
	Maximum test pressure 450 psig ( Liquid Line ) \| 400 psigs ( Suction Line )

Note:
THE ABOVE SHELLS ARE WITH STEEL CONNECTIONS SUITABLE FOR COPPER PIPE SIZES AS MENTIONED ABOVE
THE SHELLS CAN BE MADE AVAILALBLE WITH COPER CONNECTIONS ON REQUEST
ANY OTHER SIZE REQUIRED CAN BE MADE AVAILABLE ON REQUEST

Catalog Number	Connection Size	Number Of Block	Dimensions in mm
			A	B	C
FKDS-485	5/8”	1 CORE	229	160	155
FKDS-487	7/8”	1 CORE	229	160	155
FKDS-489	1 1/8”	1 CORE	229	160	155
FKDS-4811	1 3/8”	1 CORE	229	155	155
FKDS-4811S	1 3/8”	1 CORE (SUCTION)	229	155	155
FKDS-4813	1 5/8”	1 CORE	229	155	155
FKDS-4813S	1 5/8”	1 CORE (SUCTION)	229	155	155
FKDS-4817S	2 1/8”	1 CORE (SUCTION)	222	140	155
FKDS-4821S	2 5/8”	1 CORE (SUCTION)	222	140	155
FKDS-4825S	3 1/8”	1 CORE (SUCTION)	222	140	155

FKDS-96	7/8”	2 CORE	378	305	155
FKDS-969	1 1/8”	2 CORE	378	305	155
FKDS-9611	1 3/8”	2 CORE	378	300	155
FKDS-9613	1 5/8”	2 CORE	378	295	155
FKDS-9617	2 1/8”	2 CORE (SUCTION)	378	290	155
FKDS-9621S	2 5/8”	2 CORE (SUCTION)	378	290	155
FKDS-9625S	3 1/8”	2 CORE (SUCTION)	378	275	155

FKDS-1449	1 1/8”	3 CORE	510	445	155
FKDS-14411	1 3/8”	3 CORE	510	136	155
FKDS-14413	1 5/8”	3 CORE	510	440	155
FKDS-14417	2 1/8’	3 CORE	510	415	155

FKDS-19211	1 3/8”	4 CORE	600	600	155
FKDS-19213	1 5/8”	4 CORE	600	600	155
FKDS-19217	2 1/8”	4 CORE	575	575	155
