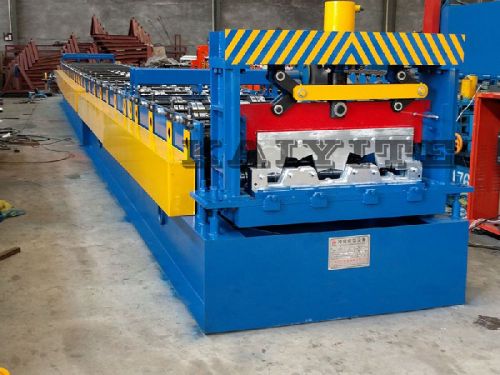

Floor Decking Roll Forming Machinery

 Floor Decking Roll Forming Machinery The speed of the floor decking roll forming machinery is 10-15m min , and it can continuously work for almost 8 hours . Because of its fully automatic,it just needs one or two worker to operate . It has the feathers of high strength , saving plenty of temporary mold and concrete ,so it is widely used on the construction building .And it will be more and more popular in future . Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Floor deck roll forming machine Minimal maintenance high efficiency reliable working  low energy consumption Durable Technical You can check our machine over all. Not only beautiful in the surface but also good quality. Technical parameters: Material Specification  :  colored steel sheet , galvanized steel sheet. Thickness of coil sheet :0.8-1.2mm Forming speed : 25 meter min Hydraulic pressure :58MPA Hydraulic station power : 4kw Main motor power : 4kw Voltage : 380V 3phases 50Hz or at buyers requirement Controlling system : PLC In order to help you know our machine much better. The following is the detailed pictures of the machine Forming rollers Specification: 45# steel, CNC Lathes, heat treatedFeature: hard chrome plating, 0.05 mm Guide device It is used to control the width and position of the steel sheet. The sheet is guided into the machine with correct position
