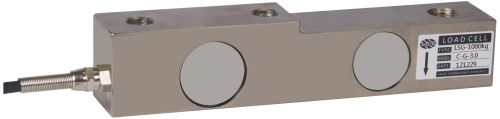

LCT Floor Scale Load Cell

We offer floor scale load cell.
Features
material:alloy steel
output adjustment for parallel using
mainly used for platform scales,floor scales etc.
Specifications
rated loading:1t、2t,3t
dimension:37*43*203mm
rated output:2.0mvv±0.25%
zero balance:±2%.r.o
non-linearity:±0.03%r.o.
hysteresis,non-repeatability:±0.03%r.o.
creep in 30 min.:±0.03%r.o.30min
temp.effect on output;±0.03%r.o.10℃
temp.effect on zero:±0.05%r.o.10℃
input resistance:385±10ω
output resistance:350±3ω
safe overload;150%.r.c.
insulation resistance:≥2000mω
compensated temp. Range;-10to+40℃
operating temp. Range:-20to+60℃
excitation,recommend:5~12vdc
excitation,maximum:18vdc
cable,length:φ6mm*5m.
