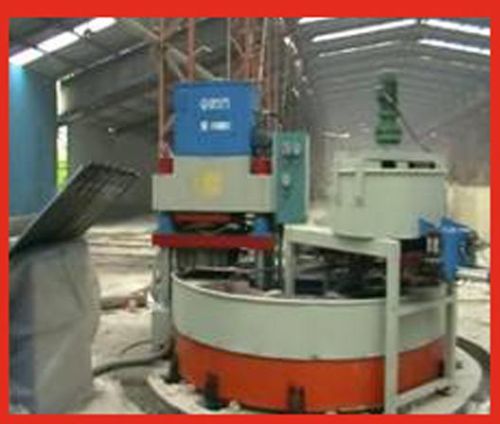

Floor Tile Hydraulic Press Machine, Power : 7.5kw

We are offering floor tile hydraulic press machine.
jsr-600-6 terrazzo tile machine can produce larger-sized tiles, such as 600x600mm, 600x800mm and 800 x 800mm.
technical details:
pressure
500ts
production
4-6pcs/m
maximum size of tiles
800*800 mm
power
15kw
weight
15ts
dimension of the whole plant
6800*4800*2400
operator
2-3
characteristic:
1,we introduced italian technology and and improving,adopt imported plc programmable controller,with the function of data import and export,logic controlled and self-diagnosis ,
2,jsr-600-6 stations automatic terrazzo tile press machine adopt import hydraulic components , in accordance with job requirements, automatic adjustment of volume and pressure, precise control of movements of the components.
3,jsr-600-6 stations automatic terrazzo tile press machine adapted actuating motor, guaranteed accurate movement of pressure head and model tool
4,jsr-600-6 stations automatic terrazzo tile press machine adapt the device of vibration table, rotary multi-material, pressure forming . Self-propelled and vacuum system. short molding cycle, high production efficiency, the large quality of compacting bricks, high strength, dimensional precision.
5,high degree of automation, multi-use of one machine, if change the model, it could produce
6. The end products possess higher strength, very nice edges and even surface.
