Flow Meter

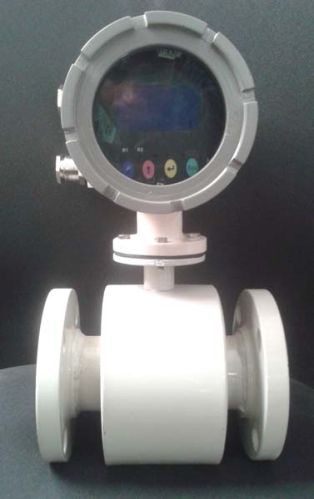

Ztech’s Electromagnetic flow meter model ZT803 is designed for flow measurement of conductive liquids with no moving parts and a PTFE lining. Electromagnetic flow meter is suitable for measurement of flow of conductive liquids, which is based on faradays law of Electromagnetic induction, according to which a voltage is induced in electrically conducting body moving in a magnetic field & this voltage is directly proportional to the velocity. Standard outputs include analog, frequency, RS232RS485 or GSM connectivity. Local-and remote-display models are available with weather proof & flame proof enclosure as an optional feature. They meet the most demanding requirements on high measurement precision, long-term stability and hygienic standard. Specifications • Flange Sizes: 150# ANSI: 19 to 305 mm (1” to 12”) • Maximum Pressure: 10 kgcm2 • Minimum Conductivity: 10 uS • Output 4-20mAdc or Modbus RTU • Electrode Material: SS316, others optional • Environmental Temperature: -5 to 55 oC (23 to 131oF) • Graphical LCD, Velocity Display • Liquid Temperature: 0 to 150oC (32 to 302oF) • Accuracy:+-1% of span. • Range: 0.3 to 10 ms • Frequency: 0 to 1000 Hz with galvanic isolation • Protection: IP67
