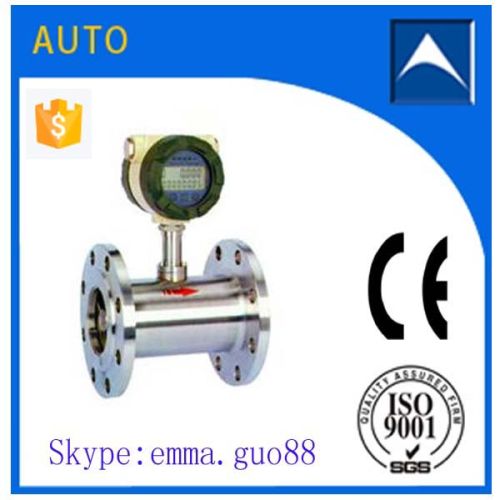

Contact SupplierWe offer Flow meter turbine flow meter for clean water.
Diameter and connection 4,6,10,15,20,25,32,40 thread connection
(15,20,25,32,40)50,65,80,100,125,150,200 flange connection
Accuracy ±1%R,±0.5%R,±0.2%R(Customer-made)
Range 1:10, 1:15, 1:20
Instrument material 304 Stainless Steel, 316L Stainless Steel, etc
Medium temperature -20°C——+110°C
Environment condition Temperature:-10°C+55°C,
Relative humidity: 5%-90%,
Atmospheric pressure: 86-106Kpa
Output signal Sensor: Pulse frequency signal, Low voltage: ≤0.8V,High voltage: ≥8V
Transmitter: Two-wire 4-20mA current signal
Power supply Sensor: +12VDC,+24VDC(optional)
Transmitter: +24VDC
Site display type: instrument with 3.2V lithium battery
Signal transmission wire STVPV3×0.3 ( three-wire), 2×0.3 (two-wire)
Transmission distance ≤1000m
Signal wire interface Basic type: Hausmann interface, Explosion proof: Internal thread M20*1.5
Explosion class Basic type: Non-explosion proof product, Explosion proof: ExdllBT6
Protection degree IP65
