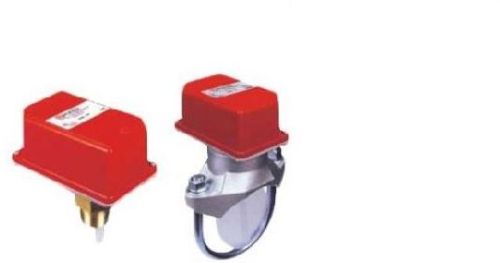

FLOW SWITCH WITH RETARD

Service Pressure: 450 PSI (31 BAR) – UL
Flow Sensitivity Range for Signal: 4-10 GPM (15-38 LPM) – UL
Contact Ratings: Two sets of SPDT (Form C)
Environmental Specifications: NEMA 4/IP54
Temperature Range: 40*F – 120*F, (4.5*C – 49*C) – UL
Non-corrosive sleeve factory installed in saddle
Approval UL Listed, FM Approvel

FLOW SWITCH FOR SMALL PIPES

Service Pressure: 250 PSI (17BAR) – UL
Flow Sensitivity Range for Signal: 8-10 GPM (30-38 LPM) – UL
Contact Ratings: Two sets of SPDT (Form C). 15.0 Amps at 125/250 VAC 2.0 Amps at 30 VDC
Environmental Specifications: NEMA 4/IP54
Temperature Range: 40 F – 120 F, (4.5 C – 49 C) – UL
Non-corrosive sleeve factory installed in saddle
Approval UL Listed, FM Approved
