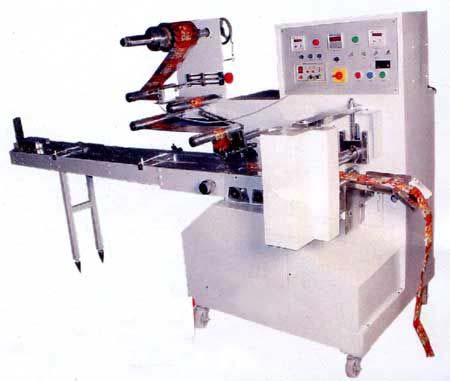

Flow Wrap Machine

We are ranked among the distinguished Manufacturers, Exporters and Suppliers in this domain; we bring forth quality assured, performance oriented and tested Flow Wrap Machine. We are instrumental in presenting machines that are designed and manufactured using premium components and that too under the stern supervision of professionals. We are working with diligent team members and they guarantee that the machines are as per the International Standards.

Applications :

• Personal Care
• Disposable Syringe
• I. V. Fluid Set
• Electrical
• Cosmetics
• Hardware
• Bakery
• Auto Ancillary etc.
• Hard boiled Sugar Confectionery (Candy)

Technical Specification :

• Product Application  -  Irregular, Cubical, Cylindrical, Square, Rectangular shaped solid Products
• Quantity/Pouch  -  One Product/ Pouch (Can be changed as per requirement)
• Feeding System  -  Manual, Auto Feeder (Conveyor, Trolley etc.)
• Temperature Controller  -  PID (Programmable Integral Derivative) based
• Machine Control  -  PLC (Programmable Logic Control) based
• Roll width -   Max. 380 mm
• Compressed Air  -  6 CFM @ 6 Bar
• Pouch/Sealing Type  -  Pillow type / Center seal
• Pouch Dimension -   Length (60-140,) Width (35-150), Height (10-70)in mm
• Power Consumption  - 3 kW
• Speed  -  30-140 Pouch / Min (Depends on laminate, Products size and shape)
• Electric Supply  -  220 V, AC, Single Phase, 50 Hz
• Machine Dimension  -  Length (3600) x Width (1500 x height (2000) mm
• Net Weight  -  650 Kg
• Optional Attachments (At an extra cost) -  Electronic Coding Device
