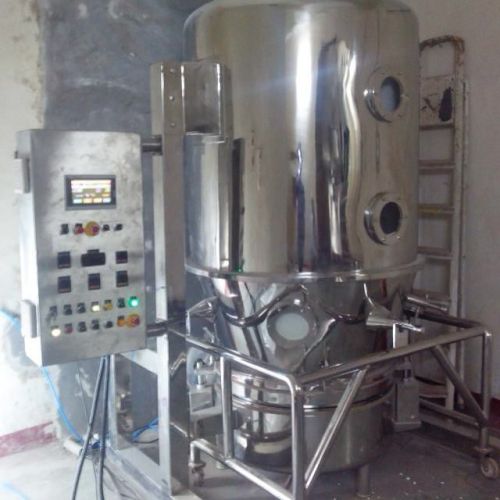

Fluid Bed Dryer, Finishing : Polished

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Fluid Bed Dryer is specifically designed for 2 bar pressure shocks. At Shashvath Fabricators and Engineers, we manufacture and supply the product across the globe from Thane, Maharashtra. We....

View More Details

Send Enquiry

Company Information

Shashvath Fabricators And Engineers

Vasai, Thane, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Fluid Bed Dryer is specifically designed for 2 bar pressure shocks. At Shashvath Fabricators and Engineers, we manufacture and supply the product across the globe from Thane, Maharashtra. We manufacture the product with various specifications to meet the needs of diverse clients. This dryer comes with a carrying capacity of 10kg, 30kg, 60kg, 120kg, 200kg and 250kg. We welcome bulk orders from our valued clients.

Operation :

Due to induced draft created by specially designed heavy-duty fan, the atmospheric air is drawn through air filter
The filtered air is then heated to the required temperature by electric steam radiator
The hot air passes through the product container and the product is dried by air fluidization
The air circulation is controlled by damper
The filter bag prevents fine particles from carrying over to exhaust air stream.

Selection :

Selection of capacity of fluid bed dryer depends upon bulk density, drying temperature and moisture contents of wet material to be dried
In case of 120 kg model a batch of 145 kg wet material can be loaded provided the bulk density of the material is 0.6 kg. Lit. (approx)
Pharmaceutical granules with 20-25% moisture can be dried in 30-45 minutes at 800 c approximately
It holds a capacity of 10 kgs 30 kgs 60 kgs 120 kgs 200 kgs 250 kgs.

TECHNICAL SPECIFICATION :

F.B.D Model	60 Kg	120 Kg	200 Kg	250 Kg	300 Kg	500 Kg
Cap. of SS Container	225 Ltrs	425 Ltrs	715 Ltrs	750 Ltrs	900 Ltrs	1700 Ltrs
Motor H.P.	10 Hp, 440 V, 50 Cys.	15 Hp, 440 V, 50 Cys.	25 Hp, 440 V, 50 Cys.	25 Hp, 440 V, 50 Cys.	30 Hp, 440 V, 50 Cys.	30 Hp X 2 = 60 H.P.
Motor Make	LHP/Remi Make, FLP	LHP/Remi Make, FLP	LHP/Remi Make, FLP	LHP/Remi Make, FLP	LHP/Remi Make, FLP	LHP/Remi Make, FLP
A.H.U. (CFM)	4000 CFM	6000 CFM	9000 CFM	9000 CFM	9000 CFM	16000 CFM
(HEPA) –	0.3 Micron
Steam Consumption	80 Kgs/Hr.	100 Kgs/Hr.	130 Kgs/Hr.	130 Kgs/Hr.	130 Kgs/Hr.	150 Kgs/Hr.
Pressure	3Kg /cm2
Temperature (Max)	60 C to 100	60 C to 100	60 C to 100	60 C to 100	60 C to 100	60 C to 100
Overall Dimension	Height – 2800 mm	Height – 3000 mm	Height – 3200 mm	Height – 3200 mm	Height – 3200 mm	Height – 4000 mm
	Width – 1100 mm	Width – 1800 mm	Width – 2000 mm	Width – 2100 mm	Width – 2200 mm	Width – 2700 mm
	Length – 1500 mm	Length – 2000 mm	Length – 2200 mm	Length – 2200 mm	Length – 2200 mm	Length – 2500 mm
