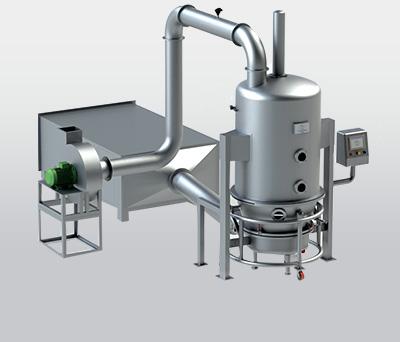

40-50Hz 1000 Kgs Polished SS Fluid Bed Dryer, for Chemical Industry, Specialities : Precise Design

Listing ID #6919371

5 Lakh - 50 Lakh / Piece

Get Latest Price

MOQ 1 Piece
Diameter (mm)50mm-100mm
Max Temperature300
Sheet Thickness5
Heating MediaHeater Coils
Supply Type Exporter, Supplier, Distributor, Trader

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Diameter (mm) 50mm-100mm
Max Temperature 300
Sheet Thickness 5
Heating Media Heater Coils
Drying Temperature 300
Automation Grade FULLY Automatic Semi Automatic
Number Of Tray 48
Brand Name PharmaChem Cosmetics
Air Heating Area Yes
Material SS
Heating Resource Gas
Finishing Polished
Output Moisture 100
Color Mirror
Rotary Speed RPM 2880
Condition New
Steam Consumption 100
Power 20kW
Power Source Electric
Motor Power 50HP
Automatic Fully Automatic
Usage Chemical Industry
Certification ISO 9001:2008
Voltage 440V
Display Type Digital
Packaging Type Wooden
Overall Length 40-50 Inch
Specialities Precise Design
Dryer Capacity 1000 Kgs
Overall Dimension 1500X1300X2100mm
Tray Size 16 X 32 X 11/4 Inch
Batch Size 500 Kgs
Type Fluidized Bed Dryer
Weight 1000 Kgs
Frequency 40-50Hz
Working Temperature 300
Phase Three Phase
Warranty 2 Year
Country of Origin India
Capacity 5 kg, 10 kg, 30 kg, 60 kg, 100 kg, 120 kg, 150 kg, 200 kg, 250 kg, 300 kg, 350 kg, 500 kg

Special Features-:

Short Drying time
Sturdy structure
Uniform Drying at low temperature
Instrinsically safe Earthing system
Fan motor unit can be placed in remote areas
0.3 micron class 100 Hepa filter (optional)
Minimum handling more Hygeinic
All contact parts are made out of S.S.304/316 and
provided with isolated control panel
Available in standard / GMP model
Heating Mode electrical / Steam / Thermic Fluid
Inflating tube for filterbag sealing (available)
2.5 kg to 500kg batch capacity
PLC based control panel

Application-
The Fluid Bed Drying technique is deal for the rapid, even drying of chemical, pharmaceutical and food products. The material may be in granules, powder or crystalline form. Normally an initial moisture content upto 20% is ideal but materials with higher initial moisture content can be dried successfully.

FLUID BED DRYER MANUFACTURERS IN MUMBAI, MAHARASHTRA, INDIA, GOA, DAMAN, GUJARAT

Specifications

MODEL IN KGS	FBD 10	FBD 30	FBD 60	FBD 120	FBD 200	FBD 250	FBD 300
Bowl Volume Ltrs	35	110	200	425	625	780	925
Batch Capacity	45214	30-40	60-75	120-150	200-240	250-290	300-325
Motor HP	2	5	10	15	20	25	30
Heating Capacity In Kw	6	18	36	54*	*	*	*
Steam Consumption / Hrs	15	25	50	100	170	200	250
Drying Temp	50-80	50-80	50-80	50-80	50-80	50-80	50-80
OVER ALL DIMENSIONS: (ALL DIMENSIONS ARE IN MM)
Height	1500	2100	2550	3200	3500	3500	3600
Width	700	1000	1250	1600	1900	1950	2050
Length	600	1400	1600	2000	2200	2750	2750

Additional Information

Payment Terms L/C, D/A, D/PT/T
Port of Dispatch MUMBAI
Packaging Details wooden
Delivery Time 1 MONTH

Interested in this product? Ask for more details & Latest Price from seller

Send Enquiry

Product Video

Product Images

Company Details

Leveraging to the wealth of expertise and knowledge, Pharmachem Cosmetic Industries has been designing advanced Fluid Bed Dryer, Starch Paste Kettle, Vibro Sifter, Multi Mill, Contra mixer, inline homogenizer, pharmaceutical machinery equipments, Zero holdup Filter Press, Mass Mixer, Packing Conveyor Belt, Ribbon Blender, Jacketed Reactor, Tray Dryer, Rapid Mixer Granulator, Colloid Mill, Liquid Manufacturing Plant, and Ointment Manufacturing Plant. Therefore, we are known as one of the leading Manufacturers, Suppliers and Exporters of Process Equipment and Machines in India. The company is set to revolutionize the Pharma Industry with its technically advanced machinery. In a short span of time we have achieved various milestones and proclaimed ourselves to be the trend setters in the field of Pharmaceutical Machinery in the country.
The company has grown from strength to strength in last 6 years and has attained un parallel leadership in manufacturing. We have also gained reputation for the reliable performance of the machines. We are a dynamic organization believing in customer support and satisfaction through quality machines and allied services, resulting in long lasting business relationship.
