Glass World Fluid Pressure Apparatus

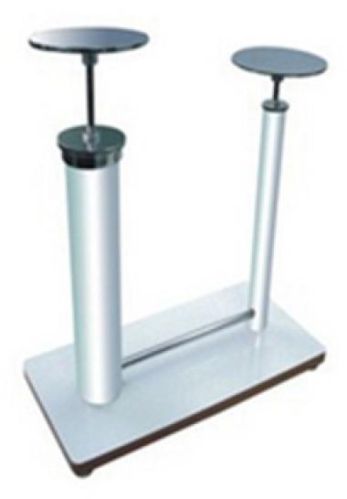

For demonstrating the transmissibility of fluid pressure. Comprising two brass cylinders 19 mm & 38 mm diameter fitted with pistons & connected by a brass tube. For loading mass, the pistons are provided with rods terminating in circular platform of diameter 75 mm each. The apparatus is mounted on a polished wooden base 200 x 100 x 22 mm & overall height with both pistons at the bottom of their cylinders is 245 mm.
