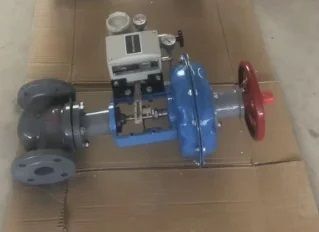

Contact SupplierWe offer a high-quality Fluorine Lined Single Seat Control Valve designed with Material - WCB, End Connection - Buttweld, Bonnet Material - WCB, Plug Material - WCB, and Seat Material - Stainless Steel. This valve has a Nominal Diameter of DN20 and a Nominal Pressure of PN16, making it ideal for various industrial applications. Trust our expertise as a leading Manufacturer to provide you with reliable and efficient control valves that meet your specific requirements.
| DN | L | H0 | H1 | H2 | H3 | H | A |
| 20 | 160 | 53 | 74 | 215 | 270 | 340 | 228 |
| 25 | 180 | 57 | 74 | 215 | 270 | 340 | 228 |
| 32 | 180 | 70 | 74 | 215 | 270 | 340 | 228 |
| 40 | 200 | 75 | 74 | 215 | 270 | 340 | 228 |
| 50 | 230 | 83 | 143 | 295 | 295 | 390 | 272 |
| 65 | 290 | 93 | 186 | 335 | 440 | 440 | 272 |
| 80 | 310 | 100 | 186 | 335 | 440 | 440 | 272 |
| 100 | 350 | 110 | 186 | 335 | 440 | 440 | 272 |
| 125 | 400 | 136 | 268 | 420 | 710 | 710 | 400 |
| 150 | 480 | 143 | 268 | 420 | 710 | 710 | 400 |
| 200 | 600 | 181 | 277 | 430 | 740 | 740 | 400 |
| 250 | 730 | 203 | 292 | 445 | 770 | 770 | 400 |
| 300 | 850 | 230 | 357 | 510 | 810 | 810 | 610 |
