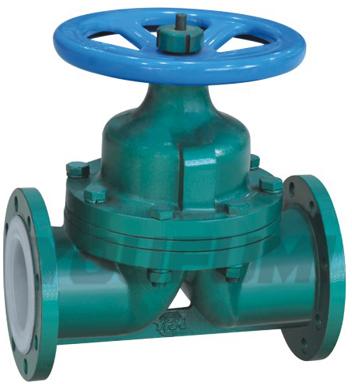

Fluorine Teflon Line Diaphragm Valve

We are offering fluorine ptfe/pfa/fep/teflon line diaphragm valve. Technical specification design and manufacture: asme b16.34 end-to-end dimension: hg/t3704 flange standard: asme/ansi 16.5 inspection and testing: api 598 product specification body material: a216/wcb, a351/cf8,a351/cf8m,a351/cf3,a351/cf3m, lcb,a536 disc: a216/wcb, a351/cf8,a351/cf8m,a351/cf3,a351/cf3m diaphragm part: epdm+pfa, fep lining material: ptfe,fep,pfa,po nominal diameter: nps 1/2-16 pressure range: 150lb 300lb jis din connection type: flange connection operation method: hand wheel etc.
