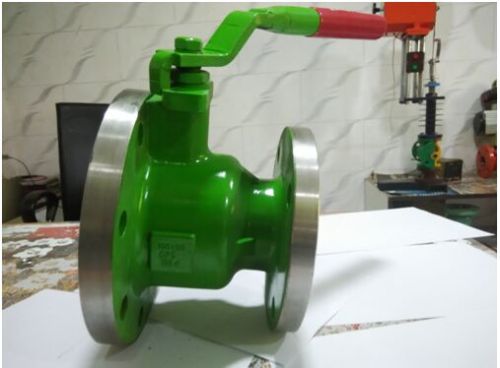

Flush Bottom Ball Valve

Get Latest Price

End Connection: Flanged End to ANSI B 16.5, Class 150 / 300
: PN 10 / PN 16 / PN 25 / PN 40
Inspection & Testing Standard: BS EN ISO 12266 – I (BS 6755 – I) / API 598/ API 607
: PN 6 / PN 10 / PN 16 / PN 25 / PN 40
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Delta Engineers

Makarpura, Vadodara, Gujarat

View Number

Member Since 19 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

End Connection: Flanged End to ANSI B 16.5, Class 150 / 300
Valve Operation: Manual Hand Lever / Worm-Gear Actuator Operated
: PN 6 / PN 10 / PN 16 / PN 25 / PN 40
Flange To Flange Distance: Mfg. Standard
Manufacuring Size Range: 1/2″ (DN15) to 12″(DN 300)
: Pneumatic Rotary Quarter Turn (Double/Single Acting) Actuator / Electrical Actuator
Design Standard: BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / BS EN 1983 / ASME B 16.34
Inspection & Testing Standard: BS EN ISO 12266 – I (BS 6755 – I) / API 598/ API 607
: BS 10 Table D / E / F / H
: PN 10 / PN 16 / PN 25 / PN 40
Pressure Rating of Valve: 150# / 300#
: DIN Standard / JIS Standard / IS Standard

End Connection – Flanged End, Pressure Rating – Class 150 / 300

Valve Operation – Hand Lever / Pneumatic Rotary Quarter Turn Actuator Operated

Flush Bottom Type Ball Valve Class 150 / 300 Series ABOUT

Flush bottom ball valves ideally suitable for the free flowing of liquid where space below vessel, tank or reactor is insufficient.

FEATURES

   Flush bottom ball valves assures “ Zero Dead Leg Area” above the ball where it tends to close.
   Casted and fabricated in all available metallurgy, Carbon Steel, S.S 304, S.S 316, S.S 304L, S.S 316L, Alloy 20 and Hast alloy.
   Valves available in the range of 25 NB to 200 NB and in BS, ANSI, standards.
  Screwed/ Bolted stuffing box (Gland), easily adjustable and with repackable service.
  Anti-blow off proof stem.
