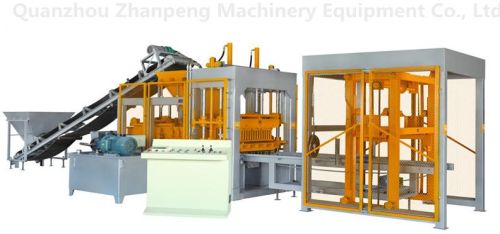

Fly Ash Brick Machine, Brand Name : Zhanpeng

We are offering fully-automatic concrete block making machine as a “national inspection-free product”, zhanpeng block making machine is well supported with complete functions, easy operation and stable quality. It has reached the leading level of its kind at home. It is applied in producing high-strength and fine-quality ordinary concrete blocks, fly ash blocks, waste residue blocks, etc. The blocks produced are featured with high consistency, good capabilities in frost-resistance, permeability-resistance, sound insulation, thermal insulation, heat-preservation property and reliable performance. Main technical features: it elevates rapidly, which is 6 times faster than the previous machine. It prevents dust to make sure the oil temperature does not raise too high. It it lifts automatically. The interval for pressure retaining can be adjusted freely. It save energy. The equivalent power can boost the speed. Qt5-15 technical data: 1) size and output of major products: a) hollow blocks: 390*190*190mm,5pcsmould b) perforated bricks: 240 x 115 x 90mm, 16pcsmould c) solid bricks: 240 x 115 x 51mm,34pcsmould d) color floor tile: 200 x 100x 60mm,18pcsmould 2) pallet size: 1100x 560x20mm 3) cycle time: 15 - 23 seconds 4) type of major vibration: table vibration 5) vibration frequency: 3800 - 4500 timesminute 6) rating pressure:25mpa 7) profile size (including pallet delivering device and green block delivering device):9450 x 3300 x 2700mm 8) weight: 6900kg.
