Fly Ash Brick Machine, Power : 36KW, Certification : ISO9001:2000&CE

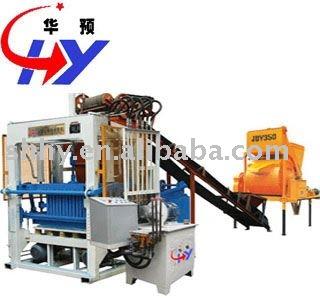

HY-QT4-25 fly ash brick machine
A)HY-QT4-25 fly ash brick machine can produce many kinds of cement products. such as hollow blocks, solid standard bricks, blind-hole bricks, pathway bricks, square bricks, high way shoulder, road-rim bricks and so on. It can satisfy all the needs of the market, and it can low the investment risk for the user in the largest extent
B)The list of production capacity and Technical parameters
Production Scale
Product
Specifications
Bricks/Mould
Bricks/Day
10,000 Bricks/Year
Standard brick
240*115*53(mm)
24
27,648
8,294,400
Hollow block
390*190*190(mm)
4
4,608
1,382,400
Multi-hole brick
240*115*90(mm)
14
16,128
4,838,400
Pathway brick
200*100*60(mm)
16
18,432
5,529,600
Technical parameters
Pallet size
890 *630 *5mm
Molding cycle
20-25 s
Dimension (L *W *H)
1760 *1680 *2600mm
Host weight
4.5T
NO
The List of the whole line
Pcs
1
Molding machine
1
2
Batching plant
1
3
Mixer
1
4
Belt conveyor
1
5
Block conveyor
1
6
Common mould
1
7
Hydraulic station
1
8
Electrical cabinet(PLC)
1
9
Pallet
1500
10
Pallet feeder
1
11
Stacker
1
12
Forklift (2T)
1
C)HY-QT4-25 fly ash brick machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:100-130T
6. water consumption per day:3%-5% of raw material Weight.
D)HY-QT4-25 fly ash brick machine for sale guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
E)HY-QT4-25 fly ash brick machine pressure:
Hollow blocks can reach10Mpa,Solid bricks can reach 35Mpa,so they have a high pressure,can be used widely.
