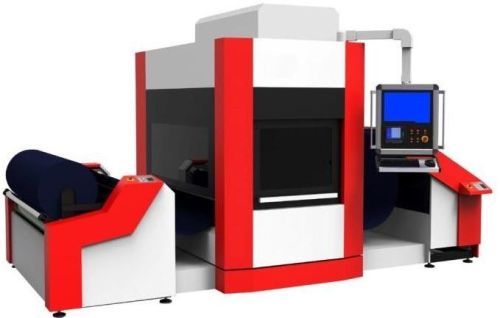

Contact SupplierKET Roll to Roll Flying Laser Engraver is textile fabrics continuous engraving, Germany 3D dynamic Galvo system, finishing continuous engraving marking in one step “on the fly” mode engraving technology. Suitable for large format fabric, textile, velvet, denim engraving, greatly improving fabric processing quality and added-value. 500W CO2 RF metal laser tube (standard configuration), it have fast processing speed and fine results. Red light positioning device and accurate material feeding.
Now along with customer have high requirement for customized design and non-pollution, we promote our economical engraving machine. Instead of traditional embossing machine, our laser machine no need to do module for each pattern, you can design any pattern in Photoshop, core draw etc. design software, then transmit to our laser software, then laser will engrave accordingly. Also it's very convenient to change the pattern; only several seconds can do it, no need to do another module like embossing machine. As you know, it is very costly to do a new module for embossing machine, different design the cost will different. Also embossing is heat processing, after 200 degrees on the fabric, maybe some pattern will loss by friction. But laser is non-touch processing, it can solve all above problem.
It is Suitable for engraving, marking cutting, punching, hollowing garment fabric, home textile, denim jeans, flannel fabric, suede fabric, cloth, woolen fabric, leather and more flexible textile fabric materials.
KET -1000FLY Roll to Roll Flying Laser Engraver |
|||
Laser Generator and Optic parameters |
|||
Laser Type |
CO2 RF Metal Laser |
Laser Power |
500W/300W |
Laser Wavelength |
10.6 Micro meters |
Galvo process area |
1600mm * 1600mm |
Galvo process speed |
0.10000mm/s (defined as the process material and requirement) |
||
Positioning Accuracy |
±0.1mm |
||
Motion System |
Offline mode Servo motor control system, 5-inch LCD screen |
||
Power Supply |
AC 380V 3-Phase supply, 50Hz |
||
Software System |
|||
Control Software |
Rip Original Machine software |
||
Software Format |
BMP, AI, DST, DXF, PLT and so on. |
||
Working table parameter |
|||
Working table type |
Transport conveyer belt |
||
Conveyor table motor |
Servo motor |
||
Assistant System |
|||
Protection System |
Full protection with optic part structure |
||
Control System |
Laser 3 Control Card |
||
Cooling System |
Constant temperature water chiller 5KW for laser machine |
||
Exhaust System |
Fixed Upper exhaust fans (filter system is optional) |
||
Standard Collocation |
Auxiliary ladder, Red light positioning, roll to roll feeding and rewinding (Servo system, position correcting device) |
