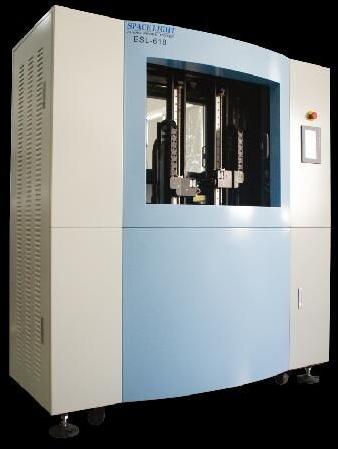

Flying Probe Tester 608

Needle point pressure: pressure can be adjusted between 5-15g, flexible pcb, ultrathin pcb & inner can be tested.
High accuracy: using closed-loop control system and imported lead screw & bearing, which can guarantee ±2µm repetitive precision; ccd has been used to adjust the entire format, which is more accurate than traditional adjust-ment.
Capacitance measurement: it can increase testing speed rapidly and increase the testing precision.
Ccd optical positioning: high precision of positioning (alignment accuracy ±0.02mm), higher speed (2 seconds), wide application range (suitable for wide range of pad.
Ccd fault detect: easily finding detection, clear display tab.; operator can point out detects easier.
Proprietary intellectual property rights: friendly interface, simply operate & upgrade, support remote software update.
Resolution 2µm
repetitive precision ±3µm
min. Pad size 50µm
max. Land space 100µm
max. Testing area 546mm×622mm
min. Testing area 20mm×40mm
needle point pressure 5-15g
testing voltage 30v-300v
testing current 10ma-200ma
short-circuit testing resistance 5mω-250mω
open-circuit testing resistance 3ω-280ω
circuit board thickness 0.2mm-8mm
power supply ac220v 50h
dimension 1500mm×750mm×1800mm
(l×w×h)
weight 800kg
