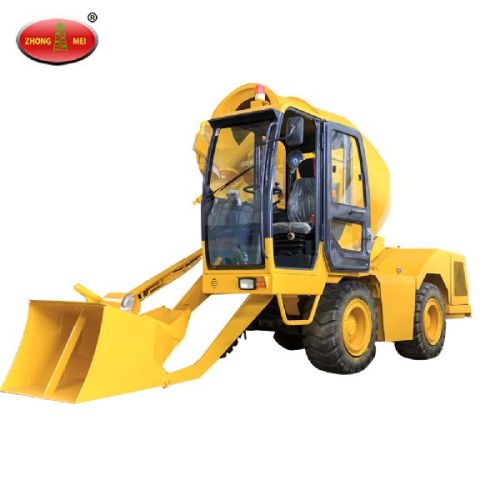

FM4.3 Self Loading Mobile Concrete Truck Mixer

Introduction of fm4.3 self loading mobile concrete truck mixer as china major construction machinery manufacturer and supplier, china coal group provides full ranges of self loading concrete mixers. The construction equipment of concrete mixer and mobile cement mixer have following characters: 1.the size of fm4.3 self loading mobile concrete truck mixer is small, suitable for limited site and widely used in new rural construction, urban construction ,tunnel ,airport ,seaport ,high speed rail site and so on. 2. High strength steel plate, enhance vehicle load capacity. The vehicle with high stability 3.small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,improve thedriving safety. 4. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing. 5.mixing blade with varying pitch design, and simplify the feeding device, ensure the speed fasterand mixing performance better.   parameter of fm4.3 self loading mobile concrete truck mixer    mixing unit drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300° productivity up to 4 batches per hour engine yuchai yc4d85 water-cooled, 4cylinders. Rated power 60kw2200rpm . Transmission 4 wheels drive,4 wheels steering. Speed working speed from 0 to 9 kmh, road transfer from 0 to 20 kmh.  driving
