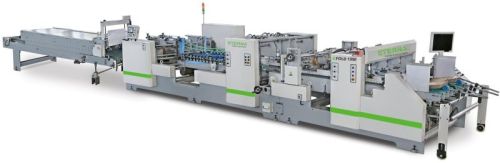

Folding Gluing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Feeder Section Designated A/C motor with micro-adjustable variable speed controller for even spacing of box blanks; Individual adjustable feed belts (four of which are suction belts)....

View More Details

Send Enquiry

Company Information

Subasolutions

Vandalur, Chennai, Tamil Nadu

View Number

Member Since 3 Years
Nature of Business Trader

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Feeder Section

Designated A/C motor with micro-adjustable variable speed controller for even spacing of box blanks;
Individual adjustable feed belts (four of which are suction belts) ensure easy setup and smooth feeding;
Motorized embossing roller guiding the belts to transport sheet.
Side-Alignment Section
The side-alignment section guarantees the stability of high speed sheet feeding between the feeder and lock bottom section.
Conveyor Compression Section
Two operation modes of compressing belt speed;
Pneumatic pressing system for easy adjustment to increase the gluing effect.

Model	650	900	1100	1350	1450
Card board	250-800 g/m2	250-800 g/m2	250-800 g/m2	300-800 g / m 2	300-800 g / m 2
Corrugated board	E and F Flute	E and F Flute	E and F Flute	E/ B/ C/ A Flute	E/ B/ C/ A Flute
Max. Belt Speed	420 m/min	420 m/min	420 m/min	200 m/min	200 m/min
Jogging Speed	20 m/min	20 m/min	20 m/min	20 m/min	20 m/min
Main motor	15 kw	15 kw	15 kw
Total Power Requirement	22 kw	22 kw	22 kw	31.5 kw	31.5 kw
Max. Air Requirement	0.7 m 3 /min	0.7 m 3 /min	0.7 m 3 /min	0.7 m 3 /min	0.7 m 3 /min
Machine dimensions	15.8 x 1.35 m	15.8 x 1.5 m	15.8 x 1.8 m	16.8 x 2 m	16.8 x 2.1 m
Weight	5.5 Ton	6 Ton	6.5 Ton	8 Ton	8.5 Ton
