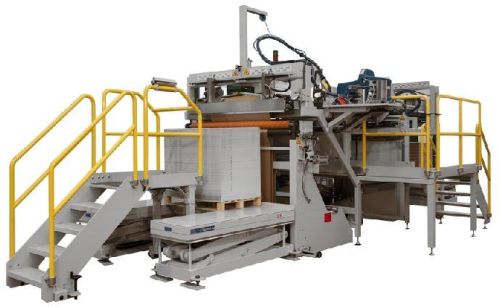

Folio-Size Paper Ream Wrapper

A semi-automatic folio-size ream wrapper that grows with your needs

This new folio ream wrapper handles all palletized folio-size materials including specialty papers outside standard GSM ranges and offers the highest semi-automatic output of all competitive machine offerings!

• Optional: handles A4 up to 1,200 mm × 1,600 mm

• Automatic depalletizer and palletizer

• Automatic girth gluing

• Automatic end gluing & sealing

• Automatic unwinding & cutting of wrapping material to selected length and width

• Upgrade enhancement to fully automatic wrapping

Appropriate for...

• Small converters currently hand-wrapping products

• Small converters requiring higher quality end products

• Small converters with potential to upgrade to fully automatic ream wrapping

• Large capacity mills currently staffing manual labor force hand-wrapping rejected materials

Ream Width	297 mm (min.)
Ream Length	420 mm (min.)
Ream Thickness	15 mm (min.)
Ream Height (End Fold)	25 mm (min.)
Ream Height (Over Fold)	15 mm (min.)
Ream Weight	5 kg (min.)
Stack Height incl. pallet
Mechanical speed/min.	up to 8 reams
Suitable products for wrapping	Paper, Paper Board, Carbonless Paper, Synthetic Paper, Plastic Sheet Materials
Product (paper) Grades	20 - 600 gsm Note: Paper under 70 gsm must be tested to assure high quality wrapping
Wrapping Material	Kraft & Poly Coated Paper (coated internally) 70 - 150 gsm Reel Diameter: 1,000 mm (max.)
Ream Feeding	Manual
Machine Operation	Electro-Mechanical/Pneumatic
Size Change- over Time	5 - 10 Minutes Note: Changes made by handwheel with dial, scale positioning, and snap-on parts
Reel Change- over Time	5 - 10 Minutes
Required Operators	3 Operators
