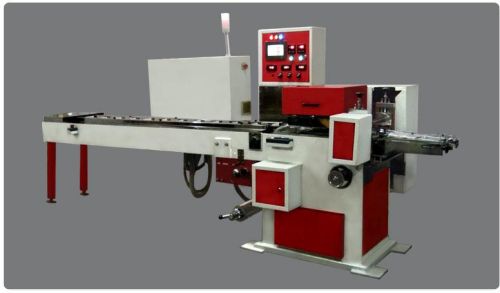

Inverted Flow Wrapper can pack loose, irregular, stick type product packing, such as vegetables, steamed dumpling, ice - bar, meat, hardware, food, bakery, confectionery, dairy, fresh produce, egg roll, sausage, squid, moon - cake, instant noodles, preserved fruit, jelly candy, toilet soap, pocket notebook, box pen, sticky tape, pharmaceutical, & so on. The machine‘s inverted film path gently transports the product directly onto the film from the former through the cutting head, greatly reducing jams and ensuring superior package appearance.
SpecificationsÂ
Bag Length: 70-360 mm;
Film Width: up to 360 mm;
Product Height: up to 65 mm;
Pack Speed: 25-250 bags / min;
Voltage: 440 V, 50 Hz, Total Power: 5 HP 3 Phase
Dimension (mm): 3900 x 920 x 1300;
Machine Weight: Approx 800 kg
Wrapping Material: LDP / BOPP / Aluminum foil any heat sellable laminated material
Parameter settings: HMI Colour Touch screen
FeaturesÂ
PLC Controller System, the photoelectric detection and bi - directional tracking, which can eliminate the error of packing and reduce the waste of packing film and raw materials.
Adopt bottom feeding film to packaging, the machine body can be cleaned by water.
Intelligent Temperature System, Intuitive display, easy for setting, accurate temperature.
High - speed, high efficiency, stable operation, low breakdown, easy maintenance etc.
Date printer, automatic punching device, falling device, Stainless steel version can be available.
