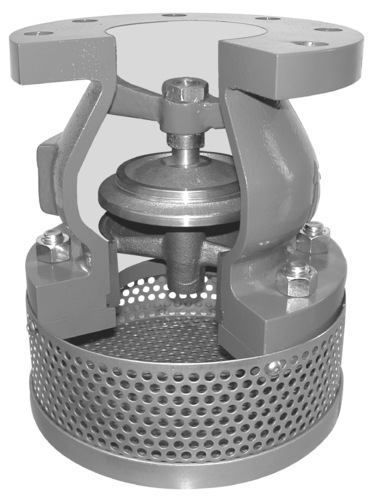

Features : Strictly conforming to IS : 4038 Available in rubber seating Available in swing type & lift type design Swing type Screwed 15mm to 150mm Swing type Flanged 50mm to 300mm Lift type Screwed & Flanged 25mm to 100mm Valves upto 150mm have single circular door Valves above 150mm have two semi circular doors Valve designed for almost full flow rate
Test Pressure : Body : 1.5 MPa Seat : 1.0 MPa 1 Bar = 0.1 MPa = 1.019 Kg/cm² = 14.50 PSI K-518 Single Disc Design K-519 Double Disc Design
Components | Material |
---|---|
Housing | Grey Cast Iron / Ductile Iron |
Hinge Pin | High Tensile Brass IS : 320, HT2 |
Disc Guide Pin | High Tensile Brass IS : 320, HT2 |
Disc | Grey Cast Iron IS : 210 FG.200 |
Disc Face | Natural Rubber with canvas reinforcement IS:5192 |
Disc Plate | Grey Cast Iron IS : 210 FG.200 |
Seat | Grey Cast Iron IS : 210 FG.200 |
Strainer | Grey Cast Iron IS : 210 FG.200 |
