FORGED BOLTED VALVES

FEVISA Valves has very extended experience in manufacturing of Forged Gate Valves

Size: ½” up to 2“(DN 15 up to DN 50)

Pressure Rating: ASME 150# to 2500#

Materials:  Forged Carbon Steel, Low Temperature Forged Carbon Steel, Forged Stainless Steel, Forged Duplex Stainless Steel, Forged Super Duplex Stainless Steel, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconel Etc.

End Connection: Flanged RF, FF, RTJ, BW, NPT (F & M), SW Ends

Operator / Actuator: Hand wheel Operated

Specification:

• Design – ASME B16.34 / API 602, BS 5352
• Face to Face – ASME B16.10
• End to End – ASME B16.10
• End Flange – ASME B16.5
• BW End – ASME B16.25
• SW End – ASME B16.11
• Screwed Ends – ASME – ANMEB B1.20.1
• Test – API598
• Special – NACE MR-01-75

Features:

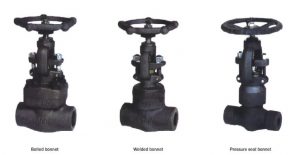

• Bolted Bonnet with spiral-wound gasket, Threaded and seal Welded Bonnet or threaded and Pressure Seal Bonnet
• Solid Wedge
• Full port or Conventional Port
• Outside Screw and Yoke (OS&Y), Rising Stem
• Extended Bonnet For Cryogenic Services
• Locking Device Optional
• Y Pattern / Angle Gate Valve
