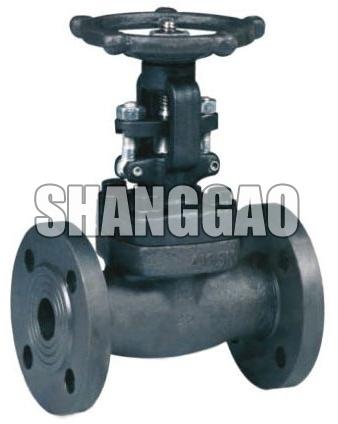

Forged Flange Globe Valve

We are offering forged globe valve.
packaging & delivery
packaging details: poly bag, paper case, wooden case.
Delivery detail: depend on the quantity and detail of packing
specifications
high pressure globe valve
design std: api 6006d
flanged std : asme b16.5
face to face std: asme b16.10
testing std: api 59
specification:
size:2"~24"
class:150lb,150lbs, 300lbs, 600lbs, 900lbs, 1500lbs as specified in b16.34
fp. Full port design
os&y outside screw and yoke
bb. Bolted bonnet
flexible wedge , fully guided
choice of solid or split wedge
renewable seat rings
forged t-head stem
rising stem and non-rising handwheel
flanged(rf) or butt welding ends .
high pressure globe valve standards:
design & mamufacture:api600 (iso 10434)
face-to-face or end-to-end : ansi b16.10
pressure temperature ratings: asme b16.34
flange dimension(rf): ansi b16.5 for nps≤24"
butt welding (bw): ansi b16.25
inspection & test: api598
