Forged Products, Brand Name : MEGATRO

We are offering Forged Products.
Product Description

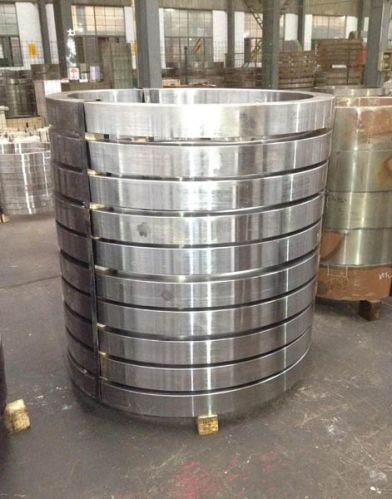

Megatro provide very type of wind power flange and forged products, which is make by special ring rolls under high temperature, and can main products high quality and longer time life.
Product Specification/Models
1
Name Products and purpose Material Specification Annual production
(ton)
Rotating and supporting rings For MW-Class wind turbine variable pulp distance, yaw components 42Cr Mo4V,
42CrMoHM etc 800-7000 30000
Wind Power Flange The connection fasteners of wind power tower Q345E, S355NL, S355J2 etc 1000-8000 50000
Gear Rings Used to produce 1.5-2MW wind power gear rotating parts in the main drive gear box 42Cr Mo4V
42CrMoA, C40 etc 800-6500 12000
2
Name Products and purpose Material Specification Annual production
Steam turbine and combustion engine forgings For steam turbine, combustion engine and electric engine 25#, 16Mn,12CrMo1V, 20MnMo, 2Cr11MoVNbN, 15CrMoA, 12Cr2Mo1, 0Cr15Mo, 1Cr13, 0Cr13 etc 500-5000
4000 tons
Nuclear power forgings For nuclear power 0Cr25Ni20, 2CrMo1VNbN, 0Cr15Mo, 1Cr12Mo, F304LN, 1Cr13, 38CrMoAIA, 1Cr11MoV etc. 500-5000
3000 tons
3
Name Products and purpose Material Specification Annual production
High tempt. And high alloy forgings High tempt. And high alloy forgings for aerospace GH132, GH698, GH3039, INCONEL 625 etc. 500-2500
1000 tons
Forgings for ship and military machine with special material Stainless steel, ultrahigh strengthen steel forging for ship and military machine with special material GCr15SiMn, 40CrNiMoa, 1Cr12Ni3MoVN, 17CrNiMo6, 34CrNi3Mo etc.
500-3500
2000 tons
Special spec. Forgings Sleeve, tube plate and shaft etc. 16Mn, 20#, A541Gr1, A182 Gr22CI3, SAE 1035, 304L, 316, 316L, 20MnMo, SA266Gr4 etc. 0.5-10t 3000 tons
4
Name Products and purpose Material Specification Annual production
Forgings for ship Gear wheel forging
for ship 25#, 45#, 42CrMo,
35CrMo etc. 500-1500
3000 tons
Wheel tire Heteromorphy forging
for train LG60,16Mn, 20MnV6 etc. 600-2500
2000 tons
Supporting forgings, gear rings For engineering truck
and excavator 16Mn, 4140H, 4150H,4340H, 4130H, 4142H, 1080, 4332H, 42CrMo4, 50Mn etc. 1000-5000
5000 tons
Heteromorphy forgings of tire mode Tire mode(or with a slope), flange etc, for dump truck 20#,35#, 45#, 42CrMo, 20MnV6, 40Cr etc 800-3000
5000 tons
Application
Megatro Wind power flange and forged products widely used in wind power,nulcear, shiping making, constuction and other industry.
