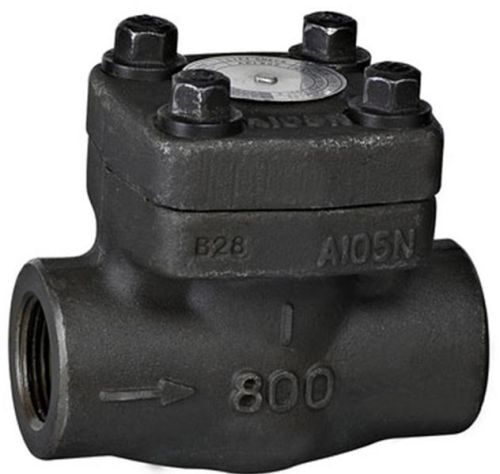

Forged Steel Check Valve

CAMTECH Forged Steel Check Valves are compact, sturdy and ideal for high pressure and high temperature applications. These valves are lift type, spring loaded check valve and available in with two type configurations, i.e., Plug type and Ball type. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options. These valves are non-return valves, which allows flow in one direction.

• The body is forged steel and available in both the full or standard port design.
• The cover is forged steel, attached on top of body.
• The plug or ball is forged steel and is part of the valve trim. The seating surfaces are ground and lapped.
• Compression spring pushes the plug or the ball to the seat for tight sealing.
• BODY-BONNET JOINT – Two different bonnet joint designs are available. These are either the bolted bonnet and seal welded type.
• The seat rings are pressed into the valve body and wedged into place, forming a seal with the body.
  The seating surfaces are ground and lapped.
• Nace service either MR-01-75 or MR-01-03 as required.
