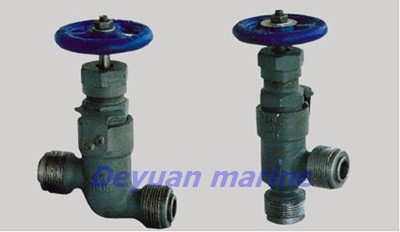

Forged Steel Globe Valve, Brand Name : deyuan

We are offering Marine forged steel male thread stop valve and Forged Steel Globe Valve.
china deyuan marine fitting co.,ltd are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with gb standard,jis standard,din standard,api、ansi,bs standard etc.pls contact us for more details
nominal pressure (mpa) nominal diameter(mm) applicable medium
4.0 15~32 fresh water,lubricanting oil,fuel
oil,t≤400℃
10.0 6~32
parts name material
name marks
body stainless steel dn10~6;2cr13
carbon steel dn25~32,q235-a
cast aluminum bronze dn6~32;zcual9mn2
cover carbon steelcast aluminum bronze q235-a,cual9mn2
discstem stainless steel,aluminum bronze 2cr132z,cual9mn2
dn6~10dimension
pn
(mpa) dn
(mm) structure dimension hand wheel weight(kg)
l h≈ h1
atype btype a type btype do s1 a type btype
10.0 6 74 37 90 12 32 m22*1.5 7 0.49 0.45
10 94 47 109 16 38 m27*1.5 8 0.89 0.86
more types can be offered,pls contact us for more details.
&&&&&&:
