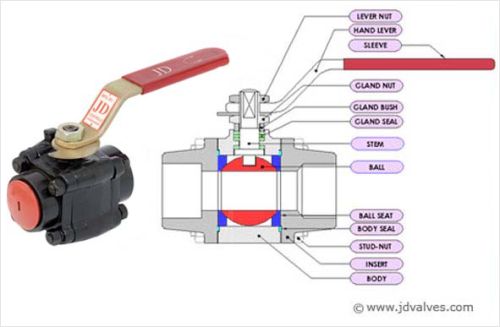

FORGED STEEL HIGH PRESSURE BALL VALVE

J. D. Controls manufacturing High performance Forged Steel Ball Valve as per international design and standard to get 100% Client Satisfaction and repeat order with total interchangeability, superior quality, workmanship & service. These Ball Valves come in Three Piece Design (1/2 to 2) to suit various critical, non-critical applications and pressure rating up to 800 class in regular (reduce) bore design.

J D P.T.F.E. seated Forged Steel Ball Valve gives Zero Leakage, Tight Shut-Off and Low Torque with easy smooth operation at temperature ranging from -20° C. to +220° C. Electro-Polished, Buff Finish & Ultra clean valve also provided for Food & Pharmaceutical Industries on request.

J D Ball Valves are also available with different type of Seat, Seal & Packing material such as P.T.F.E. (Virgin) / Glass Filled P.T.F.E. / Carbon Filled P.T.F.E. / Graphite (Grafoil) / PEEK to suit special requirement of client.

• Valve Design                              : BS 5351 / ANSI B 16.34
• Pressure Testing                       : BS 6755 Part II / API 598
• Face To Face                              : ANSI B 16.10
• Butt Weld End                          : ANSI B 16.25
• Socket Weld End                      : ANSI B 16.11
• Screwed End                             : ANSI B 1.20.1(BSP/NPT)

• High Performance Ball Valve
• Longer Life
• Positive Shut off
• Quick in Action
• No Lubrication
• Compact Design
• Low Pressure Drop
• Simplicity
