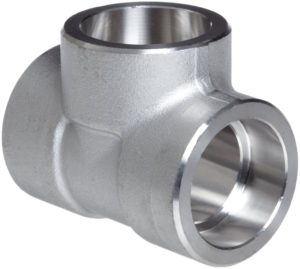

Forged Tee

Forged Tee, Socket Weld BS3799 Forged Tee, ASME B16.11 Forged Tee, Threaded Forged Tee, Manufacturer and Exporter in India. Stainless Steel Forged Tee, carbon steel Forged Tee, Alloy Steel Forged Tee, Aluminum Forged Tee, Titanium Forged Tee supplier.
Shasan Piping Solution is one of the main Suppliers, Manufactures and Exporters and offers one of the most elevated standard characteristics of Forged Tee Fittings. Comes in various structures – Equal Tee, Unequal Tee and Reducer Tee, these strung tees are a sort of funnel fittings that has a T-molded by method for two open outlets on it. These outlets are at a 90 degree indicate for join the solid principle funnel line. Realistic in various details, sizes, evaluations and thickness, these produced tees are broadly utilized as a part of different application in commercial enterprises, for example, synthetic handling, petrochemical, oil and gas, etcetera.
Details :

• Standard - ANSI/ASME, MSS, JIS, DIN, BS etc
• RANGE - Forged Fittings 15 NB to 100 NB in 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.
• TYPE - Socket Weld (S/W) & Screwed (SCRD) – NPT, BSP, BSPT
• Stainless Steel Standard - ASTM / ASME A/SA 182
• Grade - F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
• Carbon Steel Standard - ASTMA 105/A694/ A350 LF3/A350 LF2.
• Grade - F42/46/52/56/60/65/70
• Low Temperature Carbon Steel ASTM A 350 LF2 / A350 LF3
• Alloy Steel Standard :ASTM A182
• Grade - F1/F5/F9/F11/F22/F91
• Duplex Steel Standard - ASTM / ASME A/SA 182
• Grade - F 44, F 45, F51, F 53, F 55, F 60, F 61
• Copper Alloy Standard - ASTM / ASME SB 61 / 62 / 151 / 152.
• Grade - UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
• Carbon Steel Standard - ASTM A 105/A694/ A350 LF3/A350 LF2.
• Grade - F42/46/52/56/60/65/70
• Low Temperature Carbon Steel ASTM A 350 LF2 / A350 LF3
• Alloy Steel Standard - ASTM A182 Grade: F1/F5/F9/F11/F22/F91
• Forms - Elbow 45 deg , 90 degree & Three way elbow

Nickel Alloy Standard :

• ASTM / ASME SB 564 / 160 / 472
• Nickel 200 Fittings – UNS N02200
• Nickel 201 Fittings – UNS N02201
• Monel 400 Fittings – UNS N04400
• Monel K500 Fittings – UNS N05500
• Inconel K600 Fittings – UNS N06600
• Inconel 601 Fittings – UNS N06601
• Inconel 625 Fittings – UNS N06625
• Inconel 800 Fittings – UNS N08800
• Inconel 800H Fittings – UNS N08810
• Inconel 825 Fittings – UNS N08825
• Hastelloy C276 Fittings – UNS N10276
• Alloy 20 Fittings – UNS N08020

Forms :

• Equal Tee
• Reducing Tee
• Cross Tee
