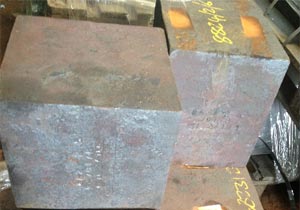

Forging Die Block (db 6 & Din 1.2714)

Identification
designation by standards
mat. No. din en aisi
854 1.2714 56nicrmov7 55crmo8 -
chemical composition
chemical composition in weight %
c si mn cr mo ni v w others
0.55 0.25 0.75 1.10 0.45 1.65 0.10 - -
general information
description
nickel hot work tool steel with good hardenability. Uniform hardness over section also at great dimensions. Resistance under impact loadings. Very good strength and thougness. Good tempering resistance and dimensional stability. Tools can be water or air cooled.
Applications
forging tools, dies of all sorts, shapes and sizes, hot forging and pressing tools for steel and metal. Moulds, bushings, piercers etc.
blocks for dies, hammers and pile drivers, rams of power hammers, hot mill rolls, very hard, cold work dies and punches.
properties
physical properties (avarage values) at ambient temperature:
modulus of elasticity [103 x nmm2]: 215
density [gcm3]: 7.84
thermal conductivity [wm.k]: 36.0
electric resistivity [ohm mm2m]: 0.30
specific heat capacity[jg.k]: 0.46
thermal conductivity [wm.k]
20?c 500?c 600?c
36.0 36.8 36.0
electric resistivity [ohm mm2m]
20?c 500?c 600?c
0.30 0.70 0.84
specific heat capacity[jg.k]
20?c 500?c 600?c
0.46 0.55 0.59
coefficient of linear thermal expansion 10-6 oc-1
20-100?c 20-200?c 20-300?c 20-400?c 20-500?c 20-600?c 20-700?c
11.7 12.1 13.0 13.5 14.0 14.3 14.6
workability
forging
hot forming temperature: 1050-850?c.
machinability
the machinability rating of d3 is roughly 25 % that of free machining carbon steel 1018. Due to its abrasion resistant nature, machining in the hardened condition should be limited to finish grinding.
