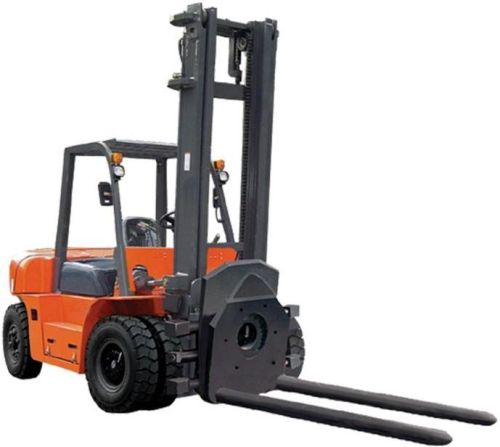

Forklift

CPC(D)10
CPC(D)10
Basic Info.Data SheetThe product integrates advanced diesel technologies of both home and abroad, and it meets ChinaⅡemission standard. It makes great improvements in power capacity, economy, startability, and reliability. with double-core air filter, the engine life is prolonged; and it also features the punch forming upper frame, counterweight of large arc, reduced front overhang, enlarged bearing capacity, and 1220 fork arm for simple and flexible operation.
· Technical Parameters
　
Model
CPC
15FR
CPCD
15FR
CPC
18FR
CPCD
18FR
CPC
20FR
CPCD
20FR
CPC
25FR
CPCD
25FR
CPC
30FR
CPCD
30FR
CPC
35FR CPCD
35FR CPC
40FR
CPCD
40FR
Load capacity kg
1500kg
1800kg 2000kg
2500kg
3000kg
3500kg
4000kg
Load center mm
500mm
Power type
Diesel
Max.lifting speeds
(with load)mm/s
500mm/s
400mm/s 375mm/s
300mm/s
Max.Driving speeds
(with without load)km/h
14.5/15km/h
17/19km/h
18/20km/h
17/19km/h 18/20km/h
Max.Towing speeds
(with/without load)kN
14.4/8.4kN
14.4/9.1kN 14/9kN 15/10kN 15.5/10.5kN 16/11kN 16.5/11.5kN
Gradeability
(with/without load)%
15/20%
H1 Lifting height mm
3000mm
Free lift mm
70mm
60mm 80mm
Tilting angles(forward-backward) 。
6/12(α前β后)
Min. turning radius mm
2000mm
2450mm
2500mm 2720mm
Min. right angle aisle width mm
1770mm 2050mm 2110mm 2320mm
Min. under-clearance mm
110mm 135mm
Dimensions
A Overall length
(inincluding fork) mm
3195mm 3605mm 3800mm 4100mm
B Overall width mm
1085mm 1160mm 1230mm
H Overall height
(mast lowered) mm
1995mm 2095mm 2100mm
H2 Overall height
(mast extend) mm
4030mm 4080mm 4270mm
H3 Overall height to overhead guard mm
2085mm 2095mm 2110mm
A1 Fork overhang mm
430mm 451mm 465mm 470mm
A2 Wheel base mm
1450mm 1640mm 1700mm 1900mm
Tread
B1 Front tread mm
891mm 970mm 1000mm 1060mm
B2 Rear tread mm
920mm 970mm
Tyre
Front tyre
6.50-10-10PR 7.00-12 28×9-15 250-15
Rear tyre
5.00-8-10PR 6.00-9 6.50-10 6.50-10
Total weight kg
2650kg 2850kg 3320kg 3600kg 4320kg 4580kg 4900kg
B3 Fork width mm
100mm 122mm 125mm 150mm
H4 Fork thickness mm
35mm 40mm 45mm 50mm
Backrest height mm
1000 1225
A3 Fork length mm
900mm 1070mm 1220mm
Engine
Engine model
485 490 498
Rate power KW
30KW 39KW 45KW
Rotate Speed At Rate Power rpm
2600rpm 2650rpm 2500
Max.torque Nm
131Nm
157Nm ≥93
Rotate speed at max torque rpm
1700rpm 1980rpm
1800-1900rpm
Type of power shift
C
H
C
H
C
H
C
H
C
H
C
H
C
H
