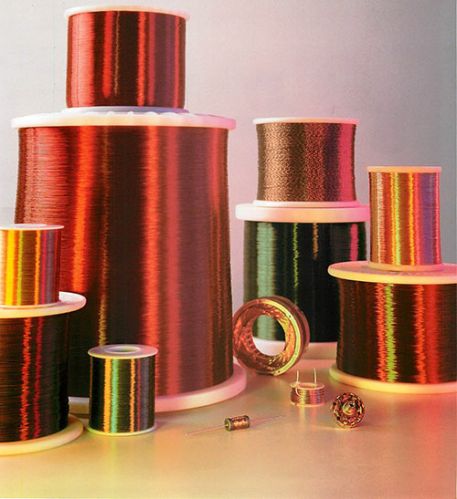

Formvar Coil Wire

Formvar 105C MW-15C-JW11774B CL-105
Thermal Class 105
Insulation Characteristics: Excellent flexibility and abrasion resistance. Will withstand excessive tension during widing, should be annealed prior to varnishing to avoid crazing. Requires mecnanical or chemical stripping.
General Applications: Motors, coils oil filled and dry transformers, armature and generator windings.
NEMA Standard (MW 1000): MW-15-C (Round)
MW-18-C (Sq & Rect)
Federal Spec. (JW 1177B): JW 11774B CL-105 Types T,T2, T3, T4 (Round)
JW 117716B CL-105 Types T2, T4 (Sq & Rect)
Military Spec. (MIL W 583C): Class 105 Types T,T2, T3, T4 Available in Gauges 4-60
Single or Heavy Build Insulation
