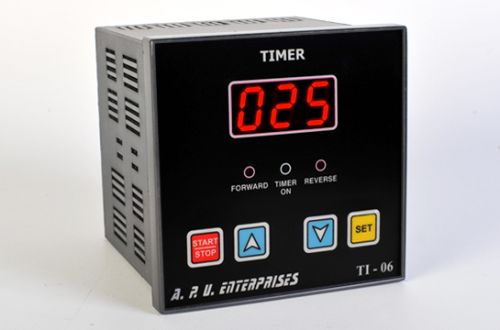

Forward - Pause - Reverse Cyclic Timer

Display3 digits, size 1/2 x 3/4 inch and 7 segment with red color.
Number relaysTwo
Number of keysFour.
Size of the enclosure96x96x85, Cut out of the panel 92x92 mm.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Input supply150-270 VAC.
Details of output relaySPDT, Goodsky RWH-SH-112D,
Number relaysTwo
Number of keysFour.
Display3 digits, size 1/2 x 3/4 inch and 7 segment with red color.
Size of the enclosure96x96x85, Cut out of the panel 92x92 mm.

This timer is specially developed to control the direction of the motor such as forward, reverse and pause time in between the directions. It is basically used in yarn dyeing, lab dyeing and other machines in which the direction of the motor is to be controlled.The main advantage of the same is that it eliminates all electrical hardware to create a multi- functional timer in the control panel due to which the size of the control panel is minimized.

Digital display, user friendly key operations, separate relay output for each direction and microprocessor based design are the main features of this instrument. All set parameters will be saved during the power failure. The timer always starts with the pause time which ensures the safety of the pump.

The maximum limit for the forward and reverse setting is 99 minutes while the downtime of the motor is 99 seconds.

How to change the parameter

The time can be set by pressing key which will show forward (For) direction on main display. If you want to change the parameter of forward direction then press key followed by / key. After changing the parameter press key again to save the parameter. Similarly reverse direction (rEU) and motor off time (dt) can be set. The timer can be restarted by using key.
