Foundry Patterns

Our task is to translate engineering drawings into foundry tooling that is pattern equipment so that an accurate casting will be produced. For complex casting design, help of CAD-CAM is taken for accurate dimensions of casting. Our skilled crafts men have years of experience in making pattern to exacting tolerances in wooden, metallic, plastic/epoxy resin materials as per the quality and quantity requirement, via traditional methods. We work with our customers to select the most economical way to produce the highest quality patterns with in the desired delivery schedule. Please contact us to discuss our design recommendations. We make patterns for sand castings (for hand and machine moulding) may be of wood, metal or plastics, to exacting standards of construction so that they can last for a reasonable length of time. Patterns are incorporated with suitable allowances for contraction and draft depending upon alloy being cast. In consultation with the customer, gating system can be designed and incorporated. Images Required

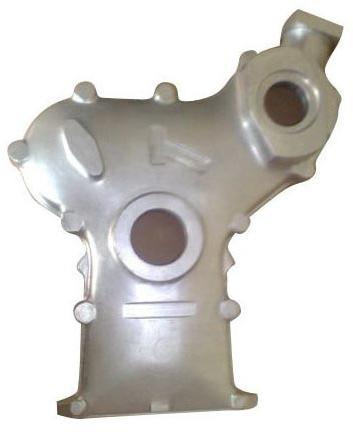

• Case Timing
• CB Case Timing
• Front Cover
• Roller Housing
• Electric Thermostat
• Hydroextractor Body
