    Four Axis Filament Winding Machines
    • Four Axis Filament Winding Machines
    • 1916065
    • 1916066

    Four Axis Filament Winding Machines

    Get Latest Price
    • Country of OriginIndia
    • Head StockSelf-centered 3 jaw chuck
    • Tail StockSelf-centered 3 jaw chuck with rear end position manual locking, Rack & Pinion with lock.
    • Power requirement440 AC, 3 Phase, 4 wire, 20 KVA.
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Mechatronic Systemsverified-icon
    location Sinhagad Road, Pune, Maharashtra
    5.0/5fill iconfill iconfill iconfill iconfill icon(1)
    View Number
    • calendar Member Since 14 Years
    • building Nature of Business Manufacturer
    • gst icon GST No. 27AIFPK2907D1ZL

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    • Country of OriginIndia
    • Fiber transmit speed,50 mtr/min. Max., Upto 20 threads
    • Tail StockSelf-centered 3 jaw chuck with rear end position manual locking, Rack & Pinion with lock.
    • Machine OperationWinding of multiple fabric strip on component.
    • Type of fiberGlass fiber or carbon fiber
    • Types of componentsPipe or cylinder
    • Head StockSelf-centered 3 jaw chuck
    • Type of machine controlCNC programming logic-G&M codes.
    • Power requirement440 AC, 3 Phase, 4 wire, 20 KVA.
    • SoftwareCadfil/Solidworks filament winding/CADWIND/XWinder.
    • Resin Bath and drumMounted on slide with resin filled in drum inserted half drum inserted

    4-Axis Details

    • X axis-Spindle axis, gear box and servo motor with timing belts & pulleys.
    • Y axis-Linear axis, rack and pinion and geared servo motor.
    • Z axis-Cross travel, rack & pinion and geared motor.
    • U axis-Geared motor and timing belt and pulleys.


    Interested in this product? Ask for more details & Latest Price from seller
    Send Enquiry

    Product Images

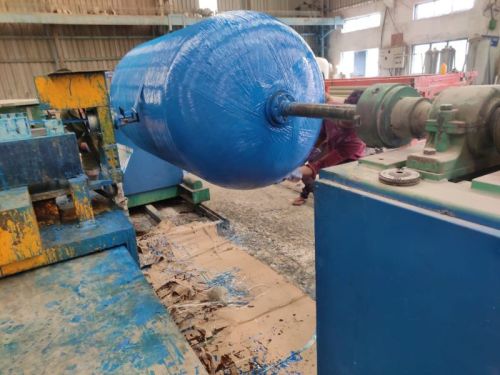

    • Four Axis Filament Winding Machines
    • Four Axis Filament Winding Machines
    • Four Axis Filament Winding Machines
