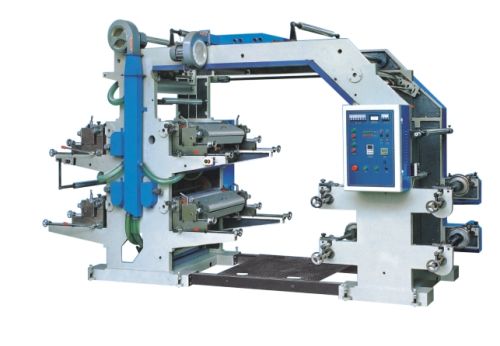

Four Color Flexographic Plastic Film Printing Machine

Four Color flexographic printing machine can print on double face 4+0, 3+1. 2+2, 1+3.   Performance and Features: 1. Easy operation, flexible starting, accurate color register. 2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.4. The printing ink is spread by the anilox cylinder with even ink color. Model of Machine YT-4600 YT-4800 YT-41000 YT-41200 Max. Width of Printing Material 600mm 800mm 1000mm 1200mm Max. Printing With 580mm 780mm 980mm 1180mm Length Range of Printed Product 190-960mm 190-960mm 190-960mm 190-960mm Max. Diameter of Roll Material ф450mm ф450mm ф450mm ф450mm Printing Speed 50mmin 50mmin 50mmin 50mmin Thickness of plate(Including Two-sides Glue Paper) 2.38mm 2.38mm 2.38mm 2.38mm Total Power 12.2kw 16.2Kw 19.25Kw 23.55 Weight of Machine 3000kg 3500 kg 4000 kg 4200kg Overall Dimensions(mm) 4200*1600*240 4200*1800*2400 4200*2000*2400 4200*2200*2400.
