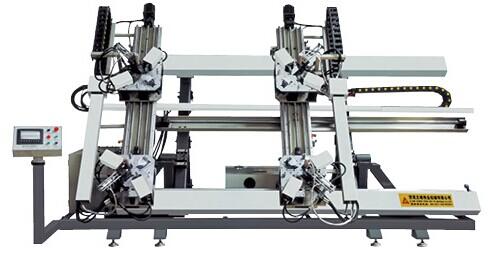

Four Head Corner Combining Machine CNC For Aluminum Window-door

₹ 13.35 Lakh / 20000 20000 Piece

MOQ1 Piece(s)
Brand NameZhengfeng
CertificationCE
ConditionNew
Total Carbohydrate1 year
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameZhengfeng
CertificationCE
ConditionNew
Total Carbohydrate1 year
After-Sales Service ProvidedYes
Country of Origin380V/50HZ
Max frame dimension1800*3000mm
Rating oil pressure15mpa
Model NumberLM4S-100*1800*3000
Mix frame dimension450*450mm
Rating power7.5kw
Corner crimping casing movement journey0-60mm
Capability of oil box60L
Air consumption pressure0.5-0.8mpa

1.Used for corner punching and riveting combination of aluminum window and door. Four corners connecting at one time available ,which greatly increased the production efficiency
2.Adopt CNC system, can realize automatic and accurate locating , thus can produce high accuracy windows
3.Wide profile processing range due to convenient corner combining cylinder setting
4.Suitable for various kinds, high quality and high volume windows production .
