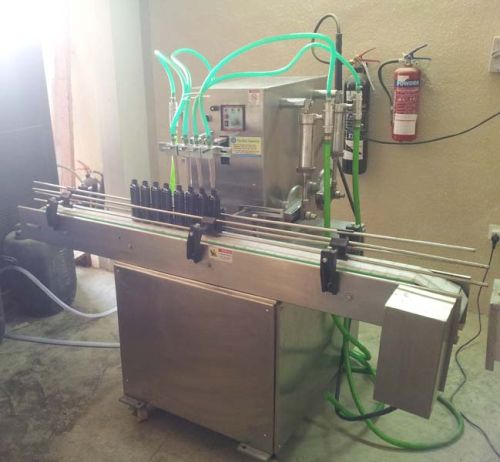

Four Head Filling Machine

Shake hands with us if incase you are looking for superior quality Four Head Filling Machine! Quality is our prime focus and so we never ever sacrifice with it and bring to you a lot that stands out of the rest. Robust construction, accurate filling and high productivity are the highlights of our machine. Our machine is versatile for filling oils, liquids, chemicals, etc from 50-6000ml. Its features of no bottle no fill, zero drip and highly precise filling movement for foamy liquids make it comprehensively in demand.

Features :

• Machine construction covered by SS304

• Liquid contact parts of rotary lobe pump in SS304

• Fast changeover design for different bottle shapes and sizes

• DELTA make PLC

• Digital colour fully functional touch screen interface on panel with all parameters.

• No-bottle no filling device

• Volumetric lobe pumps driven by clutch brake mechanism

• Filling range 100-20000ml

• Diving nozzles so as to avoid spillage and foaming.

• Filling temperature upto 90 degree.

Specifications :

• Floor space 16 x 5 x 7 feet height.

• Power supply 440V 3 phase AC

• Air compressor with dryer to be provided of 200 CFM

• SS slat chain conveyor variable speed

• Pneumatic stoppers for bottle adjustment

• Feeding and collecting turntable at both ends of 800mm diameter

• 4 head filling

• Adjustable nozzle dive height

• Filling accuracy of +/- 2ml

Electrical Specification :

• 230 V single Phase with 50 Hz with separate neutral and Earth connections (5 wire)

• Full circuit diagram along with the machine in Autocad format

• PLC of standard rating IP 54

• All supply from main isolator through MCB

• All cabling to external devices by terminal mounted on DIN rails

• Emergency stop buttons provided at panel and entry and exit points .

• All proxy sensors of Autonics make

• VFD of Delta Make

• Crompton make motor
