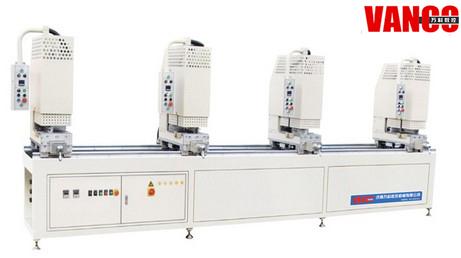

Four Head Seamless Welding Machine

We are offering top-grade four head seamless welding machine for pvc window and door shz4gc-120*4500
features:
1. the most advanced machine type in europe.
2. it can be realized automatic conversion welding seam from 0.2mm to 2mm (this function is optional).
3. high precision round guide linear motion pair and square guide linear motion pair are adopted; good rigidity of whole machine; precise parts and strictly assembling process ensures high stability.
4. electricalpneumatic components such as cylinders, solenoid valves, and plc and low-voltage apparatus are all selected strictly, which ensures high reliability.
5. equipped with quick change device and back position plate with pneumatic feeding structure, realizes corner and v-notch welding quick change, easy operation and practicability.
6. rigid clamp structure is adapted to the profile positioning system, which could strictly guarantee welding loss and high welding accuracy.
7. heating-in position timing control system, strict conforming to the european standard, ensured high welding corner strength and small fluctuation range.
8. two-step clamping design and emergency stop-pressure release function, conforming to ce standard, ensures high safety.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 100lmin
power supply: 380v50hz
input power: 10kw
welding height: 32mm~180mm
max. Welding width: 120mm
welding range: 370mm~4500mm
dimension: 5000mm*1200mm*2000mm (l*w*h)
weight: 2700kg
