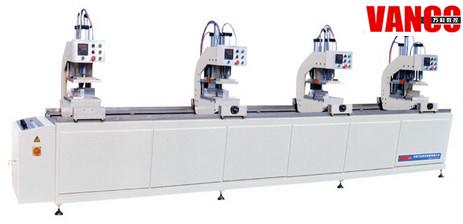

Four Head Seamless Welding Machine

We are offering four head seamless welding machine for pvc window and door shz4g-120*4500shz4-120*4500
function:
used for white and color laminating and co-extrusion profile seamless welding (0.2mm welding line).
features:
1. Four machine heads can work together or separately.
2. Achieve following type welding: ┏、┳、╋、┳┳、┳┳┳、┳┳┳┳ 、┏┳┓ 、┏┳┳、┏┳┳┓、┏┓、┏┓┏┓.
3. 2mm general welding and 0.2mm color profile seamless welding, is available and can be adjusted manually.
4. Including the position plate with sliding block motion pair which ensures the accurate position and perfect seamless welding effect.
5. Special fixture can be installed to take good control of the welding overflow range, so that to get the effect of good welding, good looking and corner strength improving.
6. Plc control welding program with high reliability.
7. The welding technological parameter can be adjustable, which can perfect meet the welding requirement of different profiles.
8. Adopts high quality electrical components with high reliability.
Technical parameter:
air pressure: 0.5~0.8mpa
air consumption: 80lmin
power supply: 380v50hz
input power: 4.5kw
welding height: 20mm~120mm
max. Welding width: 120mm
welding range: 400mm*400mm~4500mm*4500mm
dimension: 5400mm*1000mm*1700mm (l*w*h)
weight: 1550kg
