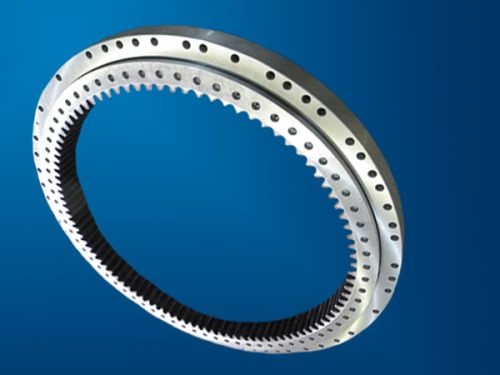

Four Point Contact Ball Slewing Bearings, Turntable Bearings Ring

We are offering slewing bearing / slewing ring bearing,
slewing bearing is a kind of special structure of large bearings which can withstand large axial load, radial load and overturning moment, integrating supporting, rotation, transmission, fixed and other functions. Under normal circumstances, slewing bearings have their own mounting holes, lubricants and seals, which can meet various of host need under different working conditions; on the other hand, slewing bearings themselves are compact, easy to guide the rotation,easy installation and easy maintenance, so they widely used in material handling equipments, mining machines, construction machinery, port machinery, wind power generation, medical equipments, radar and missile launchers and other large rotating devices.
according to different structure, slewing bearing can be divided into the following types:
1, the four-point contact ball slewing bearing
2, double row different diameter ball slewing bearing
3, crossed cylindrical roller slewing bearings
4, three-row cylindrical roller combined slewing bearing
four-point contact ball slewing bearing
four-point contact ball slewing bearing is a separative bearings, it also can be called angular contact ball bearings which can withstand two-way axial load, whose inner and outer ring raceway is a peach shaped cross section, when no load or a pure radial load role, balls and rings appear as four-point contact, which is the origin of the name; when only pure axial loading, the steel ball and the rings became two contacts can withstand axial load in both directions. Four-point contact ball slewing bearings can withstand torque loads, both the single row angular contact ball bearings and double row angular contact ball bearings features. Only four-point contact ball bearings in contact to ensure the formation of two normal work. It is generally applied to those of pure axial load or axial load large synthetic loads where contact was two, four point contact ball bearings high speed limit, but also for those high-speed operation of the occasion.
