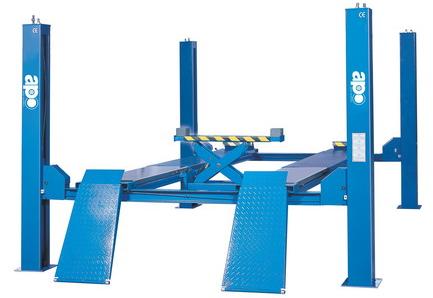

Four Post Lift LM4W-35/40/50

Features:
1,Imported electric components;
2,Level can be well adjusted to meet the need for wheel alignment.;
3,The position of the front wheel turning table (optional part) is adjustable and lengthened sliding plate suitble for various type of automobile.;
4,Device performs stable and reliable work with main insureance and anti-breaking rope safety insureance;
5,With second lifiting guide rail and can optional add the secondary lifting trolley. www.apoautomotive.com
Technical Data:
Motor Power: 2.2KW
Power supply: 380/220v
Noise level:≦70db
Air supply:6-8kg/cm2
Operating Ambient temperature:5-40℃
Operating Ambient Humidity:30-95%
Storage Temperature:-25℃~55℃
Installation Height: Elevation ≦1000M
Model： Machine Body Lifting Capacity kg(lb) Lifting Height mm(") Platform Height mm(") Platform Length mm(") Platform Width mm(") Lifting Speed (s) Dropping Speed (s) Width mm(") Length mm(")
LM4W-35 Main unit 3500(7716) 1750(69) 220(8.7) 4250(167) 520(20.5) ≤55 ≤55 3110(245) 5100(200)
2th lifting trolley 2000(4409) 490(19.3) 880-1280 (34.6-50.4) 175(6.9) ≤10 ≤10
LM4W-40 Main unit 4000(8818) 1750(69) 245(9.6) 4250(167) 520(20.5) ≤55 ≤55 3110(245) 5100(200)
2th lifting trolley 2000(4409) 490(19.3) 880-1280 (34.6-50.4) 175(6.9) ≤10 ≤10
LM4W-50 Main unit 5000(11023) 1750(69) 245(9.6) 5100(200) 520(20.5) ≤55 ≤55 3480(137) 6200(244)
2th lifting trolley 3000(6614) 490(19.3) 880-1280 (34.6-50.4) 175(6.9) ≤12 ≤12
