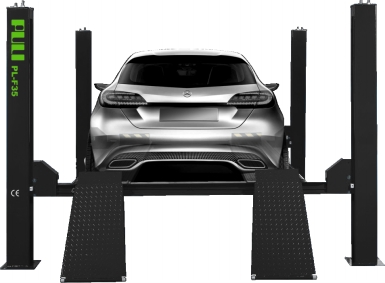

Four Post Lifts

We are offering four post lifts.
Technological features:
1.electro-hydraulic lift, with cylinder located under one of the platforms.
2.low profile platforms, with short drive-on ramps, can be for 220245 mm when fully lowered, requires less space.
3.one piece platform, no welding, ensures durability and planeness.
4.with second lifting guide rail and equipped the secondary lifting trolley.
5.safety rack installed in each column. Mechanical lock engaged automatically in lifting process.
6.adjustable width between two platforms makes the lift more flexible for different vehicles.
7.low voltage control system matches ce standard.
model pl-f35
machine body main unit
lifting capacity 3.5t
lifting height 1700mm
platform height 170mm
platform length 4250mm
platform width 520mm
lifting speed ≤55s
dropping speed ≤55s
width 3110mm
length 5100mm
model pl-f40
machine body main unit
lifting capacity 4.0t
lifting height 1700mm
platform height 195mm
platform length 4250mm
platform width 520mm
lifting speed ≤55s
dropping speed ≤55s
width 3110mm
length 5100mm
model pl-f50
machine body main unit
lifting capacity 5.0t
lifting height 1700mm
platform height 195mm
platform length 5100mm
platform width 520mm
lifting speed ≤55s
dropping speed ≤55s
width 3480mm
length 6200mm.
