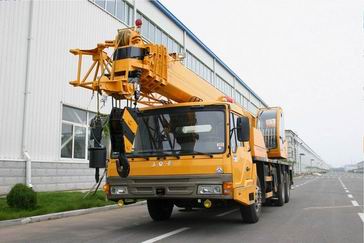

Four Section Boom Crane, Brand Name : RP

We are offering four section boom crane.
M5253jqz16g（qy16g）crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Working condition
altitude: 0-4500m
temperature: -25℃--+45℃
allowed working condition: solid, stable land, the vehicle should be horizontal
wind force: ≤6 degree
working range
m5253jqz16g（qy16g）crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 16t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
main parameters
items
unit
value
working performance parameters
max. Rated lifting weight
kg
16000
max. Rated lifting force
kn.m
588
max. Height of the basic boom
m
10.4
max. Height of the main boom
m
31.4
max. Height of the boom and jib
m
38.8
max. Speed of the single rope
m/min
120
working speed
extension time of the lifting boom
s
80
lifting time of the lifting boom
s
53
turning speed
r/min
0～2.5
traveling parameters
max. Traveling speed
km/h
75
max. Grade ability
%
26
min. Turning radius
m
11
min. Ground clearance
mm
270.
