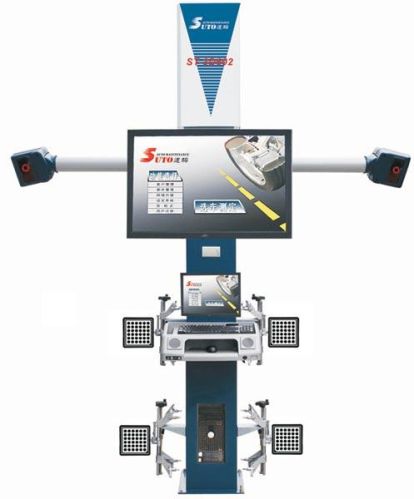

Four Wheel Aligner, Three D Wheel Alignment System

We are offering four wheel aligner and three d wheel alignment system.higher accuracy and more powerful.
Accuracy can reach to 0.1mm0.01°.
It can be realized all traditional parameters, in addition to measure the wheel base difference and wheel tread difference ect parameters, easy to complete more function that common aligner can not reach.
Easy operation
the measurement is not influence by the platform degree level, and the accuracy is also not affected by the body tilt.
Just push the car or scroll the we are offering wheel, you can complete all the measurement.
Install the target, vehicle roll compensation, virtual measurement, measurement speed is very fast.
No moving parts, no maintenance, target without calibration, no electronic components on the wheel, if the target falls, there will be no damage to the circuit, continue to work after installed.
Target of wheel aligner
* corrosion resistance * shatterproof aluminum surface
* impact-resistant cover * bulit-in buffer
* no electronic components on the wheel * no maintenance
* light weight design * no cable and no calibration
principle of measurement
install the four target on the four wheels, and roll of wheels, the camera will continuously shoot the geometric figures on the target reflectors. After the computer analysis on the changes of the geometric figures, the correspondent alignment parameters will be worked out, and then shown by the display screen. This technology is based on the basic principle of physical science perspective and computer information processing technology.
Lower failure rate
no electronic components on the reflective target, no batteries, no data transmission, since only the role of reflective images.
Metal bracket for the main frame, beams are mostly casting, compression and strong corrosion.
Computer with high-end configuration to accommodate large data processing, more stable performance.
Two high-resolution digital cameras continuously monitor the target on each wheel, the camera mounted on a high place to avoid damage.
