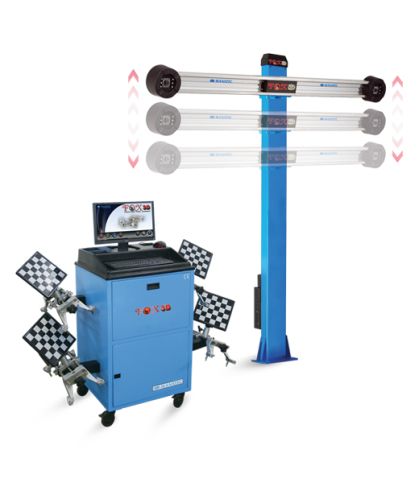

Fox 3D Auto Boom Wheel Alignment Machine

₹ 4.16 Lakh / Piece

Brand NameManatec
ConditionNew
Power Supply230V AC, 50Hz / 110V AC, 60Hz
Number Of Flower3d Wheel Alignment Machine
Supply TypeExporter, Supplier, Trader
Preferred Buyer Location All over the world

Company Information

Member Since 4 Years
Nature of Business Exporter
GST No. 29FPSPD0442B1Z2

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of Flower3d Wheel Alignment Machine
ConditionNew
Brand NameManatec
Power Supply230V AC, 50Hz / 110V AC, 60Hz
Operating Temperature0°-50 Deg C
Power Consumption400W (Without Printer)

Automatic camera beam movement synchronized with movement of the vehicle on the lift. All measurements can be done at floor level and adjustments at any convenient level. Provision for manual height adjustment also.

Description:

Vision based 3D Imaging technology using 2 High Performance SI (Scientific Image) Camera
Simultaneous Front and Rear wheel alignment (4×4)
Push Pull Runout /Setback / Thrust angle compensation
Lift level compensation at adjustment level
Unlimited memory for vehicle specifications
Option for selection of vehicle specification during alignment
Power failure data protection
Automatic tracking of Left & Right turns for Caster/Kingpin measurements
Adjustment of Camber in wheel Jacked-up position & Toe curve measurement
Rear Setback & Track width difference,
Toe adjustment in single Tie rod vehicle, Vehicle geometry measurements
Effortless Toe (Easy Toe) adjustment program
Camber measurement at Zero Toe
Drag link adjustment
Toe out on Turns & Lock angle measurements
Animated pictorial display of angles during alignment
Zoom in option for live parameters
Two Color Bar display for adjustment of all angles
Quick Wheel Alignment program by user defined
Data Manager Software for storing alignment results
Customer Address in printout & customer data edit option
3-D Pictorial & Two color text printout
Multi-lingual program & Voice prompt
Two wheel Alignment program by fixing only front two target plates

Technical Specifications

Measurement Parameters	Range	Accuracy
Camber (Front / Rear)	± 15° 00'	± 00° 02'
Caster	± 28° 00'	± 00° 05'
Kingpin Inclination	± 25° 00'	± 00° 05'
Toe (Front/Rear)	± 20° 00'	± 00° 02'
Total Toe	± 40° 00'	± 00° 04'
Toe Out on Turns	± 20° 00'	± 00° 02'
Setback (Front / Rear )	± 25 mm	± 2 mm
Thrust Angle	± 05° 00'	± 00° 02'
Runout	± 10° 00'	± 00° 02'
Included Angle	± 40° 00'	± 00° 05'
Track width difference	± 300 mm	± 5 mm
